Precision automotive controller housings require advanced CNC machining capabilities, especially when dealing with complex internal geometries and tight tolerances.
In this case study, XTJ CNC delivered a high-performance aluminum controller housing machining solution for a European automotive OEM, ensuring reliability, structural integrity, and production-ready consistency.
Project Background
| Category | Details |
|---|---|
| Industry | Automotive |
| Application | ECU Controller Housing |
| Services Provided | Precision CNC Machining |
| Technology | 5-Axis CNC Machining |
| Material | Aluminum Alloy |
| Surface Finish | Machined Finish / Optional Anodizing |
| Tolerance | ±0.01 mm (Critical Areas) |
| Production Volume | Prototype to Low-Volume Production |
Controller housings in automotive systems serve as both structural and functional components. They not only protect sensitive electronics from environmental factors but also provide critical interfaces for assembly, thermal management, and sealing.
As designs become more integrated, these housings often include internal channels, stepped cavities, and multiple precision interfaces within a single part. This increases the machining difficulty significantly, especially when high consistency is required for production.
This project involved machining a complex aluminum housing designed to:
- Protect sensitive electronic components
- Support thermal management structures
- Maintain precise assembly interfaces
- Ensure sealing performance
Engineering Challenges

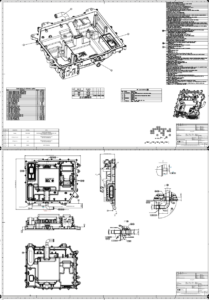

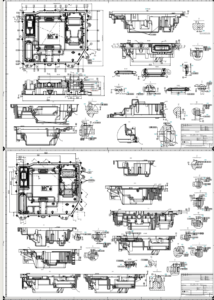

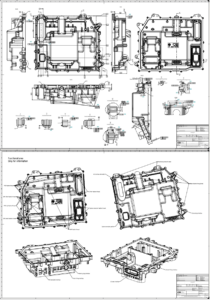

Before machining began, our engineering team conducted a full drawing and manufacturability review based on the 2D drawings and 3D CAD model. During this evaluation, several critical challenges were identified that would be difficult for conventional suppliers to handle reliably.
The first issue came from the internal geometry of the housing. The design included deep cavities and curved internal channels with limited tool access. Based on our machining experience, this type of structure often leads to poor chip evacuation and unstable cutting conditions if not properly planned. In many cases, standard 3-axis or even indexed machining approaches would struggle to achieve consistent internal surface quality.
Another key concern was the tolerance stack-up across multiple functional features. Several mounting interfaces and sealing surfaces required tight positional and geometric tolerances. From our analysis, these features were distributed across different planes, meaning that any slight deviation in setup alignment could accumulate and directly affect assembly accuracy and sealing performance.
We also identified risks related to multi-sided machining. The part required multiple orientations to complete all features, and maintaining datum consistency across setups was critical. Without a controlled machining strategy, repositioning errors could easily exceed tolerance limits—especially for automotive-grade components.
In addition, thin-wall sections were present in several areas of the housing. According to the geometry and wall thickness distribution, there was a high risk of deformation during machining due to cutting forces and clamping pressure. This is a common issue in aluminum housing parts, particularly when internal material removal is significant.
Surface finish requirements further increased the complexity. Both internal cavities and external faces needed to meet uniform surface quality standards. From experience, achieving consistent finishing inside deep cavities requires not only proper tool selection, but also stable cutting parameters and optimized toolpath transitions.
Based on this comprehensive analysis, it was clear that a conventional machining approach would not be sufficient. A more advanced strategy—combining multi-axis machining, dedicated fixturing, and optimized process planning—was required to ensure both precision and repeatability.
Our CNC Machining Solution

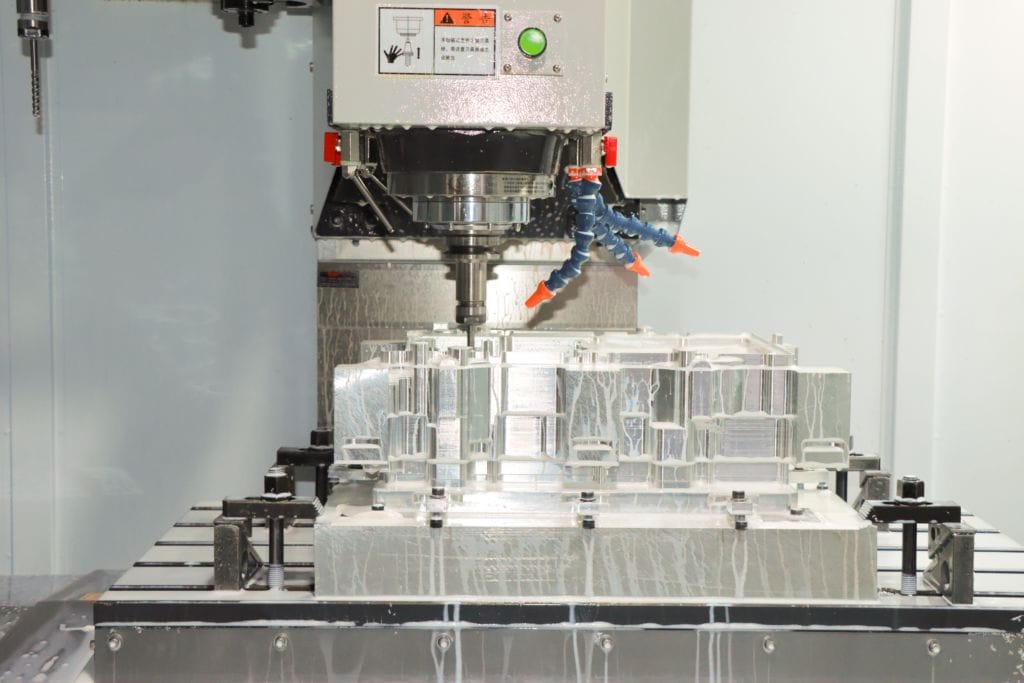

To address these challenges, we implemented a 5-axis CNC machining strategy that allowed better access to complex internal features while minimizing repositioning errors. By reducing the number of setups, we were able to improve both accuracy and efficiency.
Toolpath optimization played a key role in achieving the desired results. We used adaptive roughing to efficiently remove bulk material, followed by controlled finishing strategies to ensure surface consistency and dimensional precision. Special attention was given to step-over control and cutting parameters to minimize visible machining marks.
Custom fixturing was developed specifically for this part. By improving clamping stability and ensuring consistent positioning, we were able to reduce deformation risks and maintain repeatability across multiple pieces.
We also optimized coolant application to improve chip evacuation and maintain stable cutting conditions, especially in deep cavities. This not only enhanced surface quality but also extended tool life during production.
Manufacturing Process

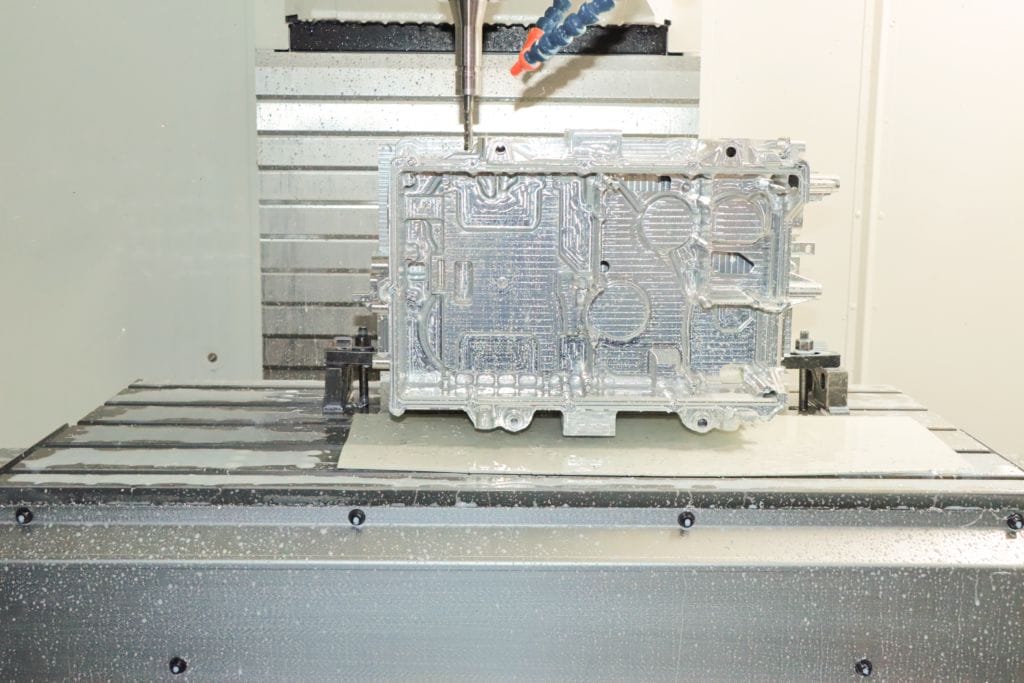

The manufacturing process followed a structured sequence, starting with raw material preparation and rough machining to remove excess material. This was followed by semi-finishing to establish key geometries, and finally high-precision 5-axis finishing to achieve tight tolerances and detailed internal features.
Drilling and tapping operations were then completed, followed by deburring, cleaning, and final inspection to ensure the part met all requirements.
Quality Control & Inspection

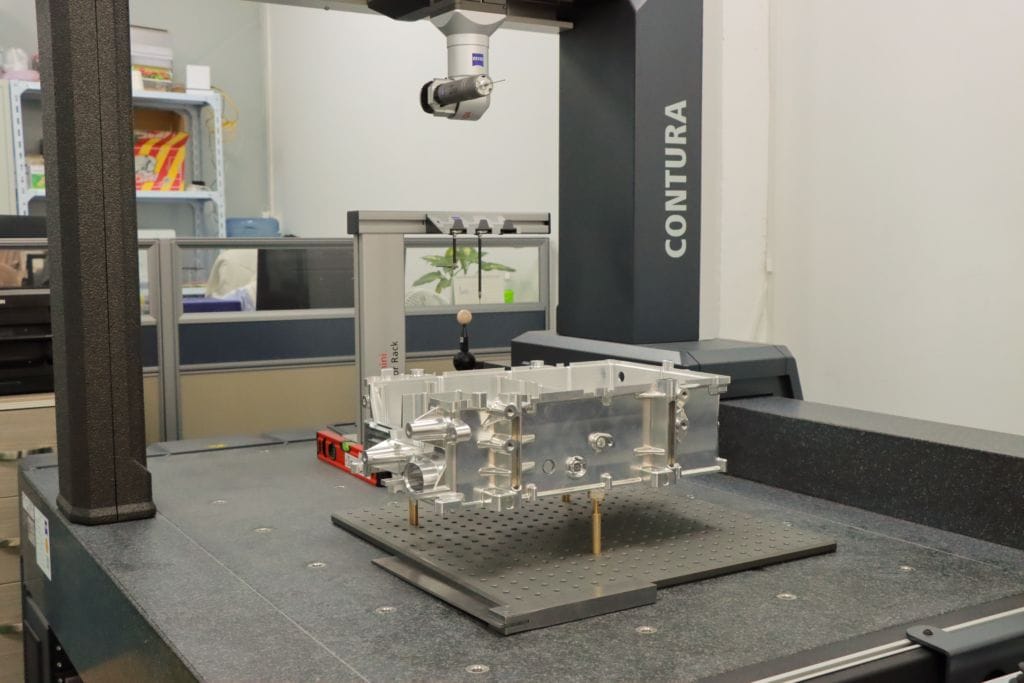

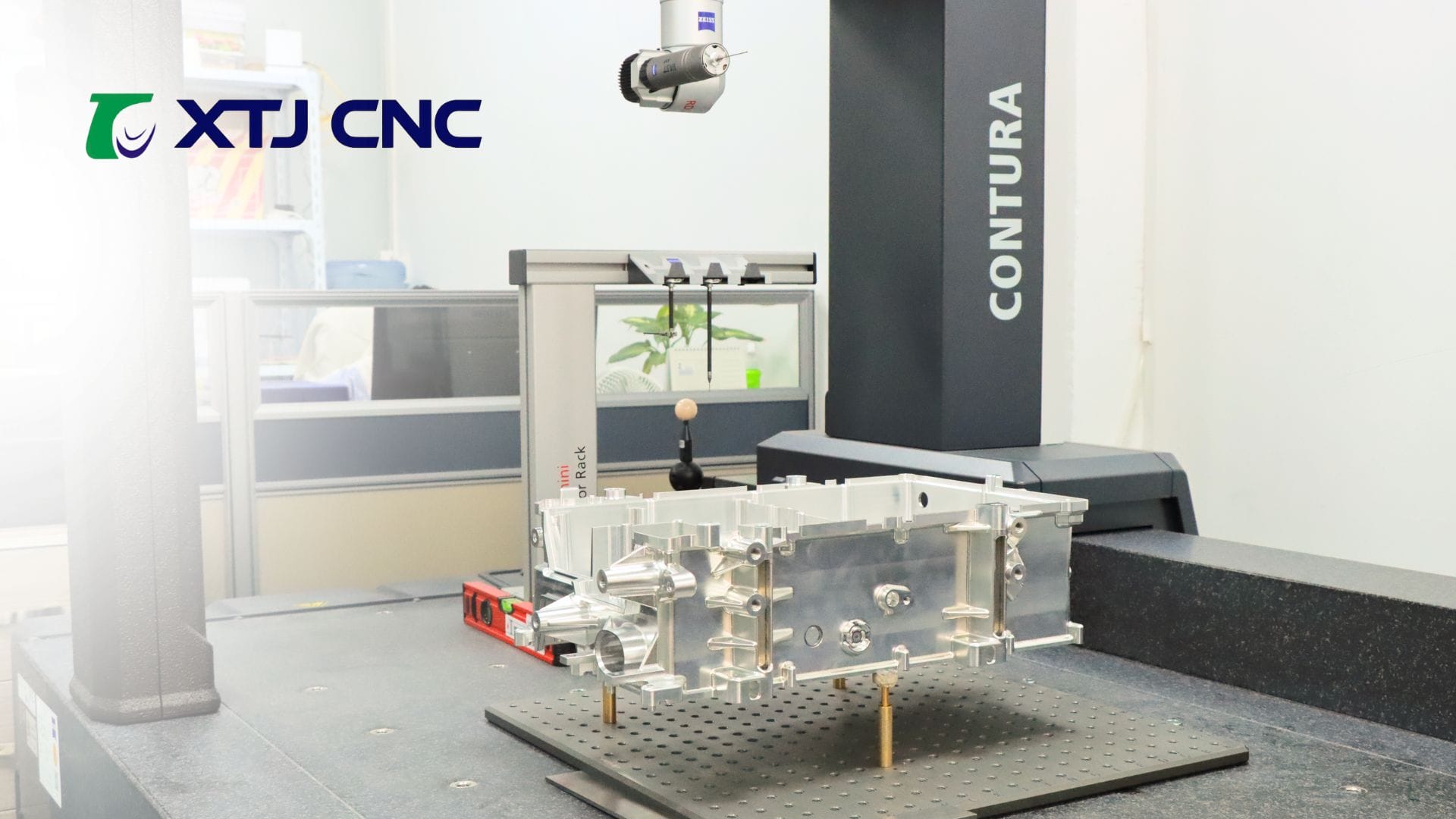

Given the precision requirements of this automotive component, comprehensive inspection was carried out using coordinate measuring equipment (CMM).
Critical features such as hole positions, sealing surfaces, and internal geometries were carefully measured to ensure compliance with design specifications. The inspection process confirmed that all key dimensions remained within tolerance and that the part was suitable for its intended application.
Leak-tightness Report-11-27
CMM inspection report
Results & Impact

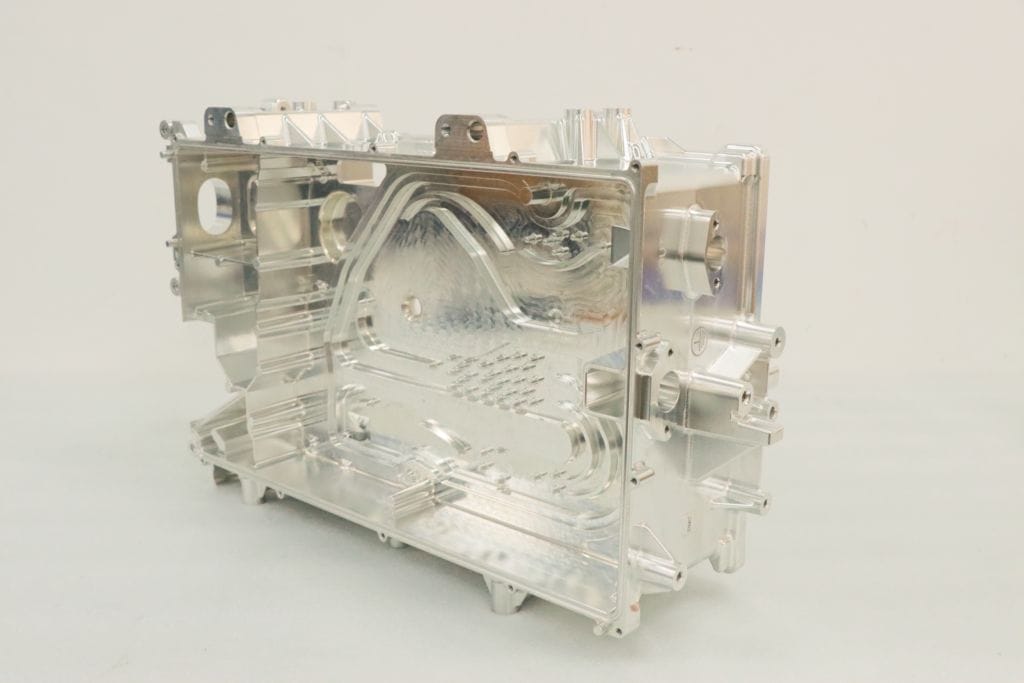

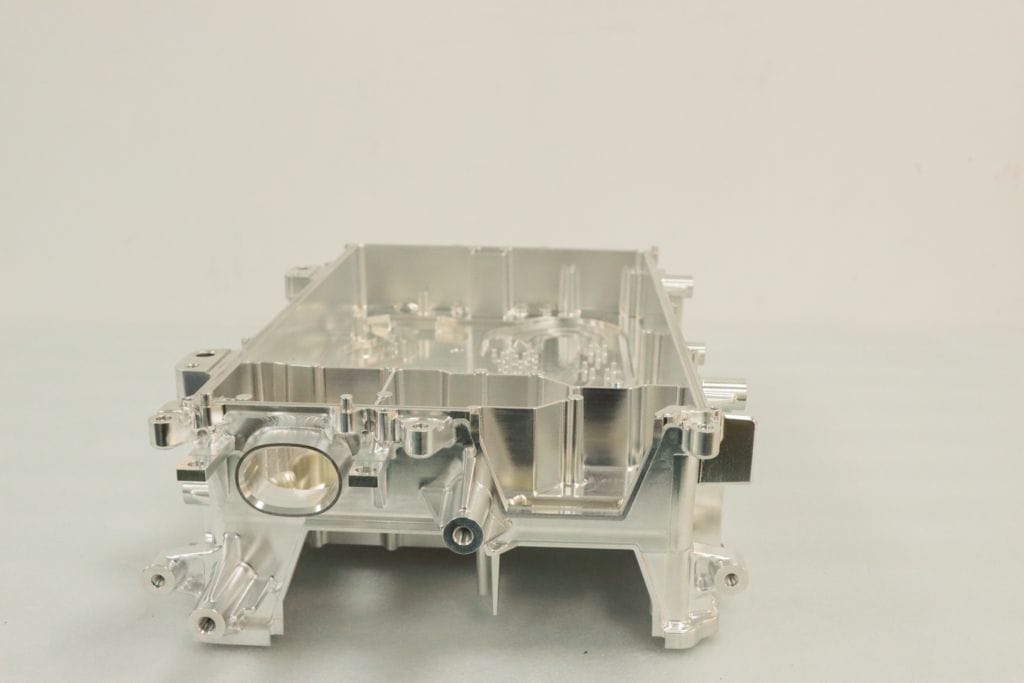

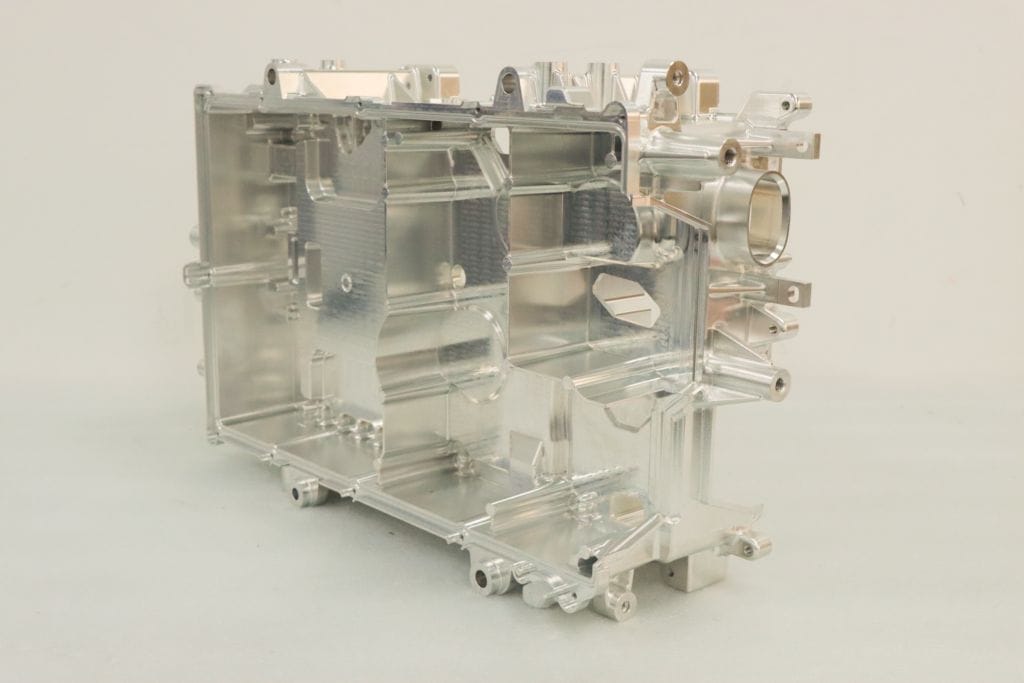

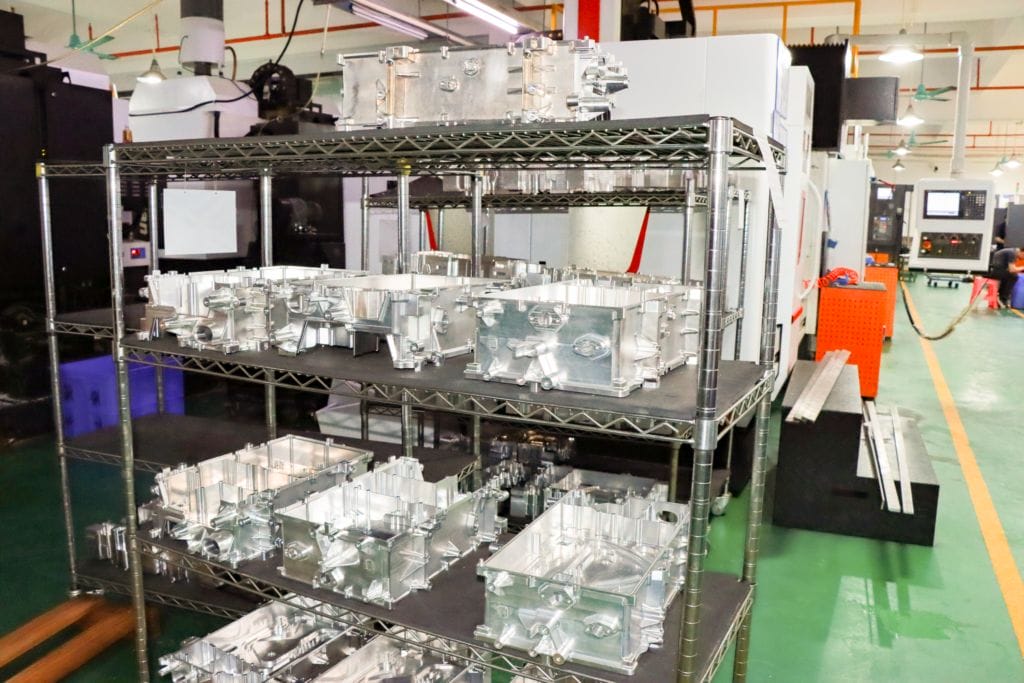

The final result was a high-precision aluminum housing with excellent dimensional accuracy and surface consistency. The machining process successfully maintained the integrity of thin-wall structures while delivering reliable results across multiple parts.
This project demonstrated not only the feasibility of machining such complex geometries but also the abilityto achieve stable repeatability, making the solution suitable for low-volume production.
Conclusion
This case highlights XTJ CNC’s capability in handling complex automotive components that require both precision and process control. By combining advanced machining technology with practical engineering solutions, we are able to support customers in developing reliable, production-ready parts for demanding applications.
