How To Polish Grooves in CNC machining

Grooves are everywhere in modern engineered parts, but they’re also where surface-finish problems love to hide.

From fluid passages and turbine cooling channels to medical-device micro-channels and automotive engine components, grooves act as sealing lands, flow paths, wear surfaces, and stress concentrators. CNC machining can hold impressive geometry in these channels, but the “as-machined” surface often still carries tool marks, scratches, burrs, and even localized burning.

Polishing is the refinement step that turns a dimensionally correct groove into a functionally reliable one. Done well, groove polishing improves assembly fit, connection strength, friction and wear performance, sealing effectiveness, and coating adhesion. For transparent plastics, polishing is also directly tied to optical clarity by minimizing roughness and distortion.

One performance statistic makes the point clearly: surface roughness below Ra 0.05 µm is associated with up to 30% better fatigue resistance and over 50% less wear from friction (per the provided research). That’s why groove surfaces are treated as high-risk, high-impact features.

What Groove Polishing Is and Why Groove Surfaces Are High-Risk Features

Grooves are internal features: channels, slots, keyways, micro-passages, and other recessed geometries. Compared with open flat faces, groove surfaces are harder to access, harder to inspect, and harder to correct after machining. That combination makes them “high-risk” from a quality standpoint.

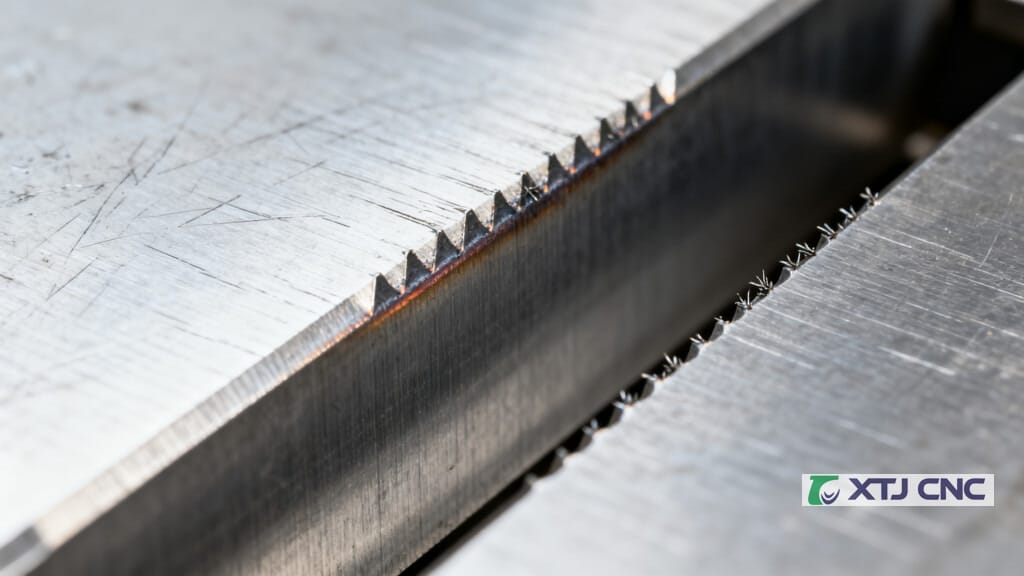

Polishing grooves is a post-machining process that removes machining byproducts and defects, including:

• Burrs (often the most dangerous in critical applications)
• Burning or heat tint from poor chip evacuation or heat buildup
• Tool marks and scratches from cutting, chatter, or tool wear

A single burr inside a groove can trigger significant failures. In practice, that can mean a torn seal during assembly, a particle trap in sanitary flow paths, an early fatigue crack from a stress riser, or premature wear in a dynamic groove interface.

Polishing also supports “system-level” outcomes:

• Better assembly fit between connecting surfaces
• Higher connection strength by minimizing stress concentrations
• Reduced friction and wear for moving interfaces
• Improved sealing effectiveness and coating adhesion (surface finish directly influences both)
• Better aesthetics for visible components by removing tool marks and scratches
• Better optical clarity for transparent plastics by reducing roughness and distortion

Define “Surface Finish” for Grooves (What You’re Actually Controlling)

“Surface finish” is not just “shiny” or “not shiny.” It describes the overall surface condition, including:

• Texture
• Roughness
• Waviness
• Lay direction
• Visual appearance

Functionally, surface finish is a measure of microscopic imperfections left by machining: small bumps, valleys, and directional patterns that change contact behavior, flow behavior, and stress distribution.

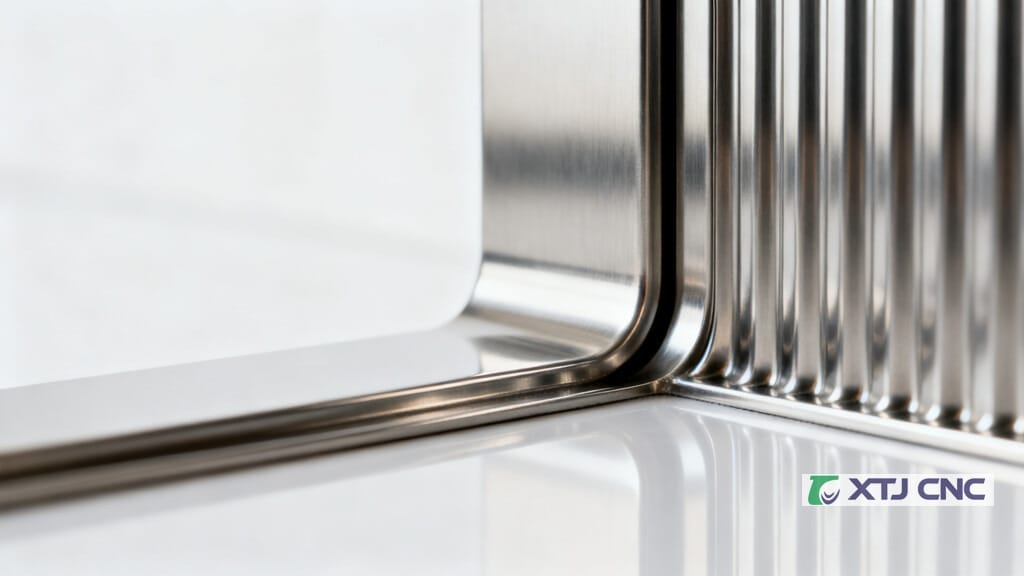

When you polish a groove, you’re controlling surface texture outcomes. A mirror look may be a requirement in some cases, but the engineering purpose is usually to control texture so the groove performs consistently.

Surface texture is commonly decomposed into three components:

• Roughness
• Waviness
• Lay

This distinction matters because different processes (and different measurement setups) “see” different parts of texture.

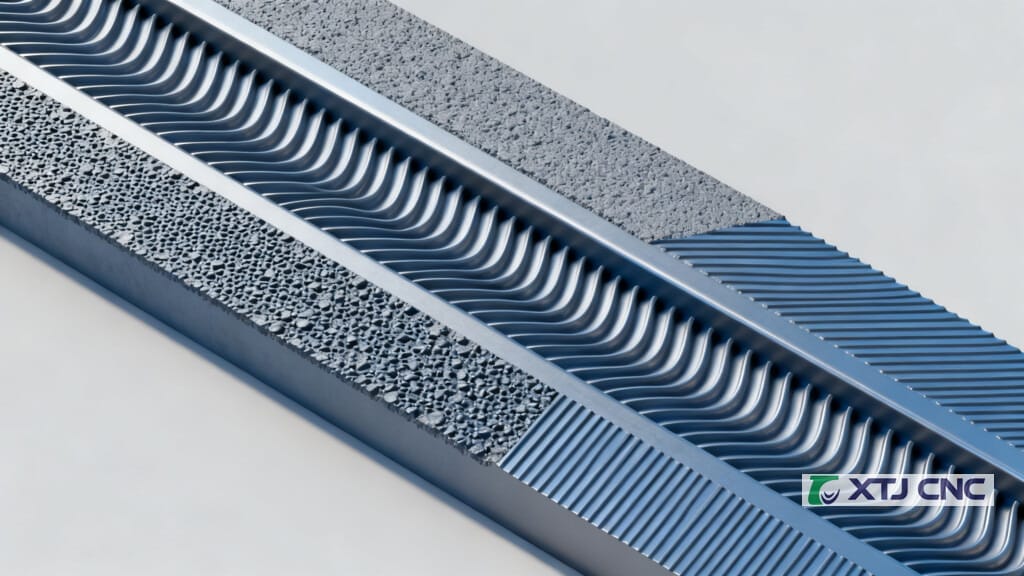

Groove Surface Texture Components (Roughness, Waviness, Lay) and Their Root Causes

Roughness: fine, closely spaced deviations

Roughness is typically driven by cutting-process inputs such as:

• Feed rate (higher feed usually means rougher surfaces)
• Tool sharpness (dull tools increase roughness and can cause micro-damage)
• Cutting speed (too low can tear; too high can accelerate wear depending on material)

In grooves, roughness often comes from toolpath overlap, corner engagement changes, chip re-cutting, and localized built-up edge (BUE), especially in “gummy” materials.

Waviness: larger, more widely spaced variations

Waviness has larger spacing than roughness and is more associated with the machine system than the cutting edge. Key waviness drivers include:

• Vibration and chatter
• Tool or workpiece deflection
• Thermal distortion

Because waviness is on a larger scale, it can remain even after an aggressive polish that lowers Ra. That’s why it’s common to see a low Ra measurement but still have sealing or contact issues if waviness remains.

Lay: the direction of the dominant pattern

Lay is the direction of the surface pattern created by the machining method. Turning commonly produces circular patterns, while milling can produce directional toolpath lines. In grooves, lay direction can influence:

• How seals contact and slide
• How fluids and gases move through channels
• How coatings wet and anchor to the surface

Groove polishing aims to reduce deviation amplitude (especially roughness, and sometimes waviness), while improving visual appearance. But you should still think about whether the final lay and the remaining waviness align with the groove’s function (sealing, flow, wear, fatigue).

Surface Roughness Metrics You Must Specify for Groove Polishing (Ra, Rz, Rq, Rp, Rv, Rt)

If groove polishing is specified as “polish as needed,” you will get inconsistent outcomes. A groove needs measurable roughness targets.

Here are the core metrics used in machining and polishing specifications:

Ra (Roughness Average)

Ra is the most common parameter. It averages the absolute deviations from the mean line over an evaluation length.

• Lower Ra means a smoother surface.
• Ra provides a general indication of texture without being overly influenced by isolated extreme peaks or valleys.
• Because it’s widely adopted across machining, casting, and grinding, Ra is often the default on drawings.

Rz (Average Maximum Height / Mean Roughness Depth)

Rz is the average peak-to-valley height across multiple sampling lengths (often described as averaging the largest peak-to-valley differences across segments).

• Rz is more sensitive than Ra to occasional high peaks or deep valleys.
• That sensitivity makes Rz crucial where extremes affect performance, such as sealing surfaces.

In groove applications, Rz frequently correlates better with “will it leak?” or “will the seal cut?” than Ra alone.

Rq (Root Mean Square / RMS)

Rq weights larger deviations more heavily than Ra.

• Often cited as ideal for precision engineering and optical applications where larger deviations are disproportionately harmful.

Rp, Rv, Rt (extremes and total height)

• Rp: maximum peak height within the sampling length
• Rv: maximum valley depth within the sampling length
• Rt: total vertical distance between highest peak and lowest valley across the evaluation length (useful for overall quality control)

Roughness Grades (N Numbers) and Practical Groove Finish Targets

To make surface finish easier to communicate, many drawings use N-number roughness grades standardized under DIN ISO 1302. The cited scale ranges from:

• N1 (0.025 µm Ra)
• to N12 (50.0 µm Ra)

For groove polishing plans, start by selecting:

• A target metric (example: Ra 0.8 µm)
• An N-grade equivalent (example: around N6)
• Any secondary requirement (example: Rz limit for sealing)

This prevents the classic mistake of specifying “polish” without defining what “good” means.

How to Measure Groove Roughness Before and After Polishing (Metrology Options)

Grooves are difficult to measure because access is limited and the measurement path may not be straight. Still, measurement is non-negotiable if the groove function is critical.

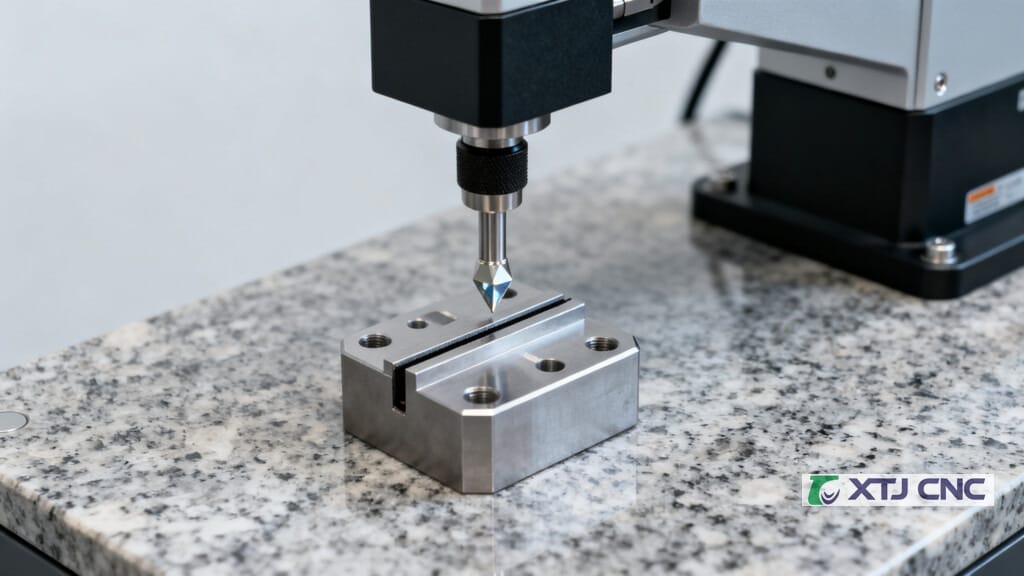

Contact profilometer (stylus)

A contact stylus profilometer uses a diamond-tipped stylus that drags across the surface and records a profile, reporting values such as Ra and Rz.

• It is widely treated as an industry standard for accuracy.
• It’s excellent for objective before-and-after comparisons.

Practical groove considerations:

• You need physical access and an appropriate stylus tip radius for the groove width and fillets.
• Fixturing must stabilize the part to avoid measurement noise that looks like waviness.

Optical and other non-contact methods

Optical methods (laser or white-light scanning) create 3D profiles and are ideal when:

• The part is delicate
• The finish is extremely fine
• Contact might damage the surface or cannot reach properly

Non-contact options mentioned in the research include laser and white-light scanning and other optical profilometry methods used in precision inspection environments.

Common Groove Polishing Options (How to Choose)

Groove polishing method selection depends on material, groove geometry, reachability, target finish, and cost.

Manual work can also be frustratingly slow. Even with significant sanding effort, machining lines can remain visible on some parts (as noted in the cited experience).

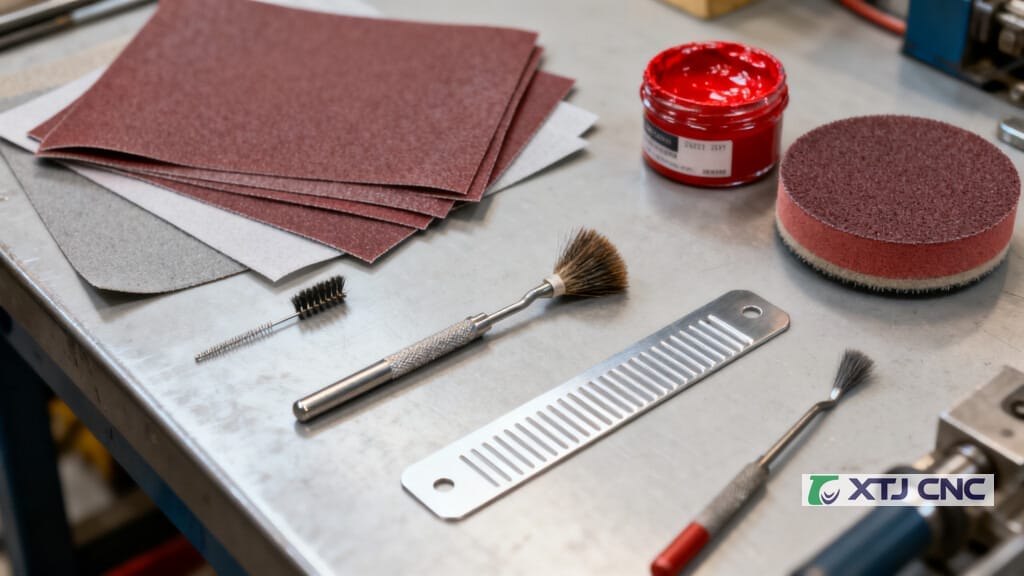

Mechanical polishing (traditional and CNC-assisted)

Mechanical polishing removes asperities through abrasive action and can also involve local plastic deformation under pressure.

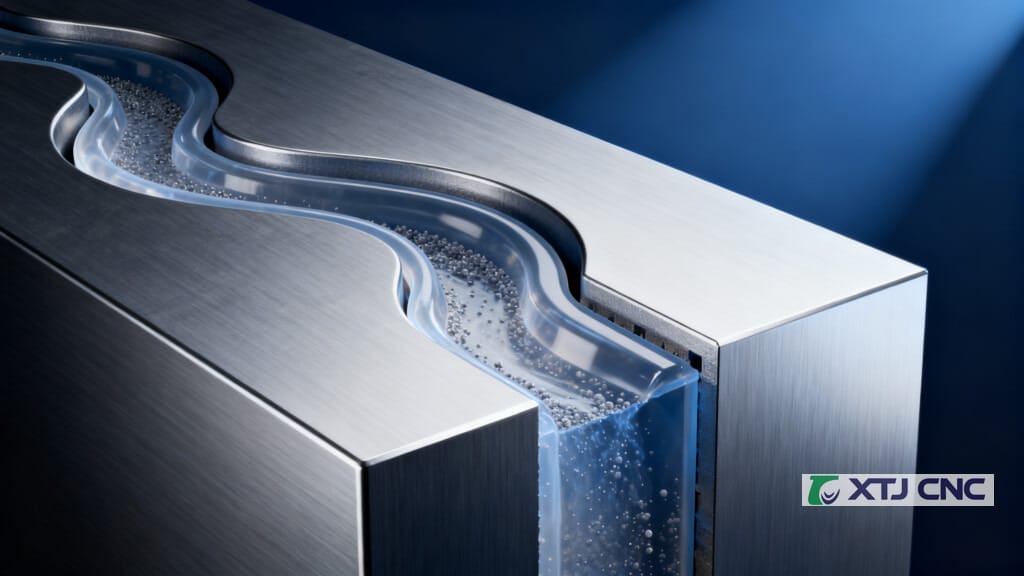

Abrasive Flow Machining (AFM) and variants

AFM uses a viscoelastic polymer media impregnated with abrasive particles, hydraulically forced through internal passages. It is especially effective for internal and complex groove geometries.

Notable hybrid performance example from the research: RDSM-AFM reduced Ra from 0.61 µm to 0.082 µm (87% improvement) under specified conditions, and higher rotational speed correlated with lower roughness.

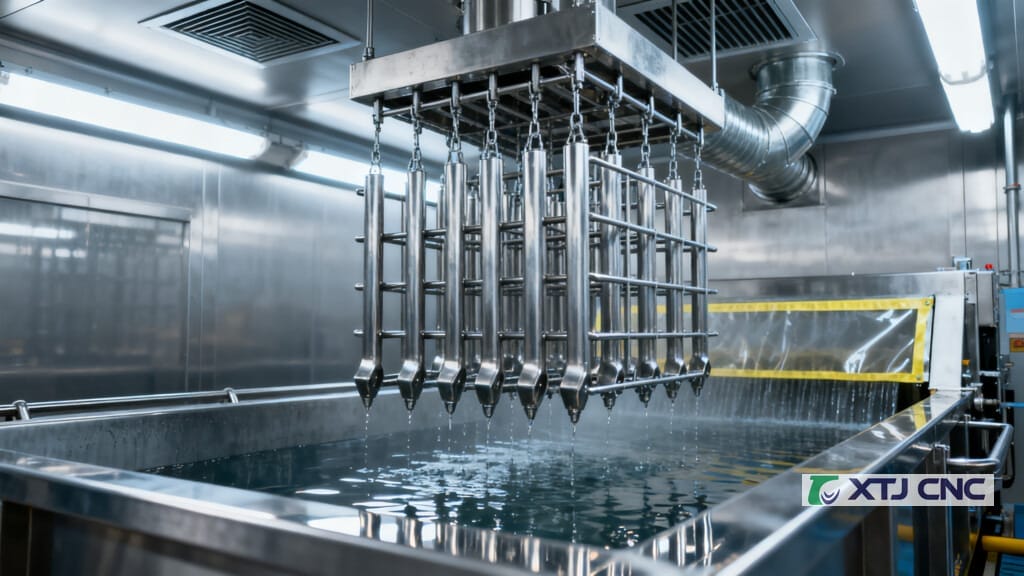

Electropolishing (electrochemical polishing)

Electropolishing removes a thin, controlled layer of metal by anodic leveling: microscopic peaks dissolve faster than valleys due to higher local current density. It is widely used on stainless steel, especially 300-series (304, 316L).

Example on 316L: Ra 32 µin pre-process to 16 to 20 µin post-process (35 to 50% improvement)

Practical process window details cited:

• Current density often 140 to 250 ASF
• Time commonly 2 to 20 minutes
• Post-process rinsing, neutralization, and sometimes passivation per ASTM A967 or ASTM B912

Actionable Process Planning Tips (Before You Polish)

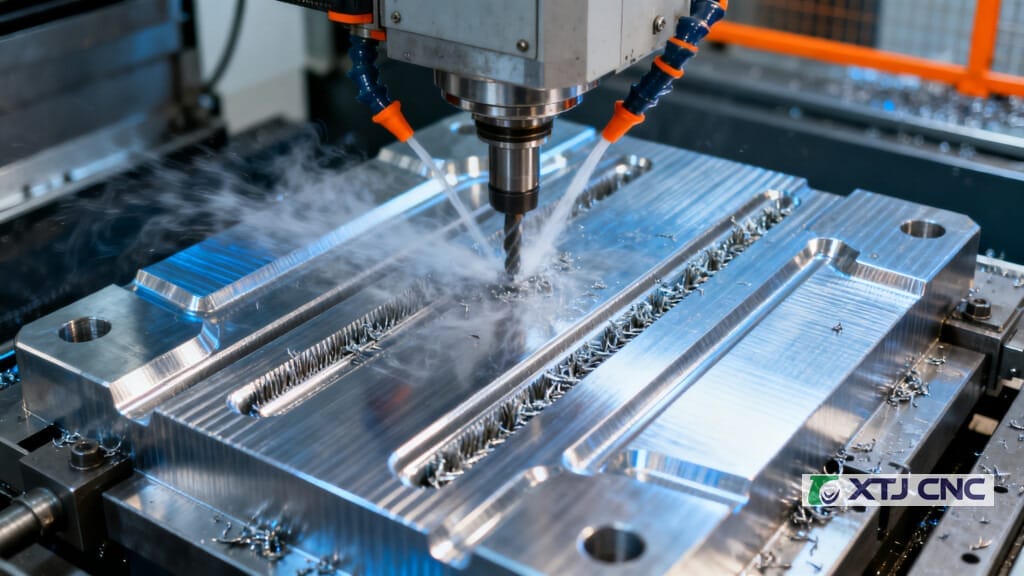

Even though polishing is a post-process, the machining step controls how hard polishing will be. A better as-machined groove means less polishing time, lower cost, and less risk of geometry change.

Use these pre-polishing practices pulled directly from the research trends and parameter impacts:

1. Optimize tool material and geometry
   Sharp carbide or diamond tools with larger nose radii generally improve surface finish. Consistent tool condition matters because tool wear increases roughness and can introduce micro-cracks.
2. Control feed rate for finish passes
   Higher feed rates usually create rougher surfaces; reducing feed helps achieve smoother finishes.
3. Tune cutting speed by material
   Too low can cause tearing; too high can accelerate tool wear. Stainless steel often benefits from higher speeds when properly cooled.
4. Reduce depth of cut for finishing
   Heavy cuts leave pronounced tool marks. Plan a finishing pass (or staged passes) to reduce marks before polishing.
5. Use coolant and chip evacuation as “finish tools”
   Flood coolant or MQL helps dissipate heat, reduce friction, remove chips, and reduce built-up edge. Heat buildup can cause residual stress and surface/subsurface damage, which polishing cannot always “fix.”
6. Deburr before polishing, especially for tight-tolerance grooves
   Deburring is often manual and should be controlled. For tight grooves, light deburring and cleaning are preferred to avoid altering geometry.

Specify, Plan, Polish, Verify

Polishing grooves in CNC machining is ultimately about controlling function, not just appearance. Grooves are internal, high-risk features where surface texture drives sealing, wear, coating adhesion, fatigue resistance, and sometimes optical clarity.

A reliable groove polishing strategy follows a simple sequence:

• Specify the finish using measurable metrics (Ra, and often Rz) and align it with DIN ISO 1302 N-grades
• Improve the as-machined groove through optimized tooling, feeds/speeds, cooling, and multi-pass finishing
• Choose a polishing method that matches the groove geometry and material (manual, mechanical, AFM, electropolishing, or advanced processes where justified)
• Verify the outcome with appropriate metrology (stylus profilometer or optical methods)

For organizations sourcing precision CNC parts, the fastest path to consistent groove quality is to treat polishing as part of process planning, not as an afterthought. When groove surfaces are specified clearly and verified correctly, you reduce rework, improve performance, and avoid the hidden cost of over-finishing.
