- Choose a bioceramic type by biological response first: bioinert (minimal interaction), bioactive (bonds to tissue), or biodegradable/resorbable (gradually replaced by tissue).
- In the body, ceramics bring hardness, wear resistance, and chemical stability, but their brittleness and low tensile strength must be designed around.
- For bone ingrowth, porosity and pore size are not optional details: pores generally need to be larger than 100 to 150 micrometers, and larger than 300 micrometers often support better vascularization.
- Manufacturing is typically powder-based: powder processing, forming a green body, binder removal, then sintering (or lower-temperature alternatives like HIP and cold sintering).
- In many real implants, the winning strategy is “hybrid”: use a strong metal for load-bearing, then apply a bioactive ceramic coating (for example, plasma-sprayed hydroxyapatite) to improve integration.
Bioceramics are one of those “quiet” technologies that most people never think about, yet they sit at the center of modern medicine and dentistry. If you have ever heard of ceramic hip heads, hydroxyapatite coatings, bioactive glass bone fillers, or bioceramic endodontic sealers, you have already bumped into this field.
At its simplest, bioceramics are ceramic materials specifically developed for medical and dental use, most commonly as implants and restorative components placed inside the human body. They are typically used to replace hard tissues such as bone and teeth, and they can be synthetic or natural in origin. Over roughly the last 50 years, bioceramics (and biomaterials broadly) have evolved from early inert substitutes into sophisticated platforms that support tissue repair and regeneration, helping restore function in ways that were not possible in earlier decades.
This matters not just clinically, but economically: the global bioceramics market has been reported growing from about US$1 billion (2001) to US$14 billion (2020), with projections to US$23 billion by 2031. Notably, dental applications account for about 42% of total bioceramics use, with orthopedic surgeries next.
Bioceramics in Context: Definitions, Biomaterials, and the “Bio” in Bioceramic
Bioceramics sit within the larger biomaterials family, alongside biometals, biopolymers, and biocomposites.
What counts as a biomaterial?
A classic definition describes biomaterials as substances (excluding drugs) used to treat, augment, or replace any tissue, organ, or function of the body, and intended to interact with biological systems. A more contemporary definition introduced in September 2009 emphasizes engineered substances designed to direct therapeutic or diagnostic procedures by controlling interactions with living systems (in human or veterinary medicine).
What makes a ceramic a “bioceramic”?
Bioceramics are inorganic, non-metallic materials, frequently crystalline oxides, nitrides, or carbides, and are engineered to function safely in physiological environments.
The “bio” does not mean “biological origin.” Instead, it reflects how the material is designed to interact with the body, ranging from minimal interaction (bioinert) to direct bonding (bioactive) to controlled dissolution and replacement (bioresorbable).
A Brief History and Milestones in Bioceramics
Bioceramics are often described as emerging in the 1960s, when the emphasis was on inert substitutes that minimized reactivity. The term “bioceramics” itself first appeared in the scientific literature in 1971 (in an abstract) and 1972 (in a title).
A major community milestone arrived with the first international symposium on bioceramics, held in Kyoto, Japan, on April 26, 1988.
From there, the trajectory tracks the broader biomaterials story: over the last ~50 years, advancement accelerated, driven in part by medical needs associated with aging populations. The field progressed beyond simple replacement into regenerative platforms supporting tissue repair and regeneration, and bioceramics became integral to restoring bodily functions across multiple specialties.
Today, their footprint is no longer “mostly orthopedics.” Dentistry is a major high-volume driver, consistent with the ~42% application share attributed to dental uses.
Market Landscape and Demand Drivers (Medical + Dental)
Bioceramics demand is pulled by both demographics and procedure volume.
Market growth at a glance
- Reported global bioceramics market: US$1B (2001), US$14B (2020), projected US$23B (2031)
- Another market view (Cognitive Market Research / ResearchAndMarkets.com): $3355.47 million (2021) projected to $4650.2 million by end of 2025
What is driving adoption?
- Aging demographics: more osteoarthritis, more fractures, more restorative dentistry, and generally more interventions requiring durable materials.
- Hard-tissue replacement needs: bioceramics align naturally with bone and tooth applications.
- Expansion beyond inert replacement: bioactive and resorbable ceramics increase clinical value by improving bonding and enabling regeneration, which broadens indications.
Where bioceramics are used most
- Dental: about 42% of total applications, spanning restorations and endodontics
- Orthopedics: the next major category, including load-bearing joint components (notably for bioinert ceramics) and coatings/bone graft substitutes (common for bioactive and resorbable ceramics)
Core Ceramic Characteristics That Matter in the Body (Properties Overview)
Ceramics bring a distinctive bundle of strengths and weaknesses. In the body, those “materials science truths” translate into very practical design constraints.
Typical ceramic traits (why engineers like them)
- High melting temperatures and ability to tolerate very high temperatures (often on the order of 1000 degrees C to 1600 degrees C)
- High hardness
- High compressive strength (often excellent under compression)
- Low electrical conductivity and low thermal conductivity
- Chemical resistance, including resistance to chemical erosion in acidic or caustic environments
- Often stable over long exposure to body fluids, depending on category (inert versus reactive versus resorbable)
The big limitation: stiffness and brittleness
Ceramics are typically stiff and brittle. They often have lower tensile strength compared to compressive strength, and fracture toughness can be a limiting factor. This is one reason why many bioactive ceramics are used as coatings rather than as bulk load-bearing components.
A note on glass
Glass is often not strictly classified as a ceramic because it is amorphous. However, it is frequently included in the bioceramics discussion because its manufacturing uses ceramic processing routes, and its mechanical behavior can be similar.
Quick Reference
| High hardness | Low wear in articulating joints; requires precision finishing (very low roughness) |
| High compressive strength | Good under compressive bone loads; suitable for compressive fillers and certain joint parts |
| Low tensile strength / brittleness | Risk of cracking under bending/impact; requires conservative geometry, flaw control, avoid sharp corners |
| Chemical resistance | Stability in body fluids; long-term implant durability (bioinert classes) |
| Low conductivity | Thermal/electrical insulation; useful in some device contexts, not usually the main driver |
The Main Types of Bioceramics (Classification by Biological Response)
A widely used classification groups bioceramics into three main types based on interaction with biological systems: bioinert, bioactive, and biodegradable/resorbable.
Bioinert bioceramics
Definition: Bioinert materials exhibit minimal or negligible interaction with biological systems and elicit no significant biological or physiological response.
What the body does: They are typically well tolerated, leading to encapsulation by a nonadherent fibrous coating around 1 micrometer thick.
Examples:
- Alumina (Al2O3)
- Zirconia (ZrO2)
- Vitreous carbon
- Near-inert non-oxide ceramics in development such as silicon nitride (Si3N4) and silicon carbide (SiC)
How they attach: Often through morphological fixation, such as press-fit/cementing and bone growing into surface irregularities. For porous inert implants designed for bone ingrowth, pore sizes generally need to be larger than 100 to 150 micrometers to support viable tissue and blood supply; pores smaller than 100 micrometers do not adequately support vascular tissue.
Where they are used:
- Load-bearing joint components (hip, knee, shoulder, wrist, elbow)
- Dental implants
- Bone plates and screws
- Femoral heads (commonly alumina)
Bioactive bioceramics
Definition: Bioactive ceramics actively interact with the biological environment and form a direct chemical bond with surrounding tissue (bone and sometimes soft tissue).
What the body does: These materials can stimulate cellular responses that promote bone formation and healing, often through bioactive ion release and surface chemistry that supports osteoblast and osteoclast activity.
Examples:
- Bioactive glasses, such as Bioglass 45S5
- Bioactive glass-ceramics, such as Ceravital and A/W glass-ceramic
- Hydroxyapatite (HA)
- Calcium silicates and other calcium orthophosphate ceramics
Advantages: Often associated with earlier stabilization and potentially a longer functional life due to direct bonding.
Limitations: Commonly weaker mechanically than metals and high-strength ceramics like alumina and zirconia, with low fracture toughness in bulk form. This is why they are frequently used as coatings on metal implants rather than as large load-bearing monoliths.
Biodegradable or resorbable bioceramics
Definition: These ceramics are designed to gradually dissolve or resorb and be replaced by host tissue. A key requirement is that dissolution products are non-toxic.
How they “attach”: They are slowly replaced by newly formed bone rather than permanently remaining as an inert part.
Examples:
- Tricalcium phosphate (TCP)
- Some types of bioactive glass
- Certain calcium phosphate-based materials
- Calcium sulfates
- Brushite-based materials
Applications:
- Bone defect and void fillers (granules, grafts)
- Coatings in situations where bulk strength is insufficient
Limitations: Generally poor mechanical strength, which limits load-bearing use. Interfacial stability can also be a concern as the material degrades.
Materials Spotlight: Common Bioceramics and What They’re Good At
This section connects real materials to the three biological-response categories.
Alumina (Al2O3): the classic bioinert workhorse
- Typically high-purity, often more than 99.5% purity for high-density applications
- Noted for corrosion resistance, biocompatibility, and excellent wear resistance
- Often processed by pressing then sintering at 1600 to 1800 degrees C
- A small amount of MgO (less than 0.5%) may be added to inhibit grain growth and achieve high density
- Standards commonly reference ISO 6474 for alumina implants
- Used in load-bearing hip prostheses (femoral heads, cups) and other orthopedic components
Practical design note: alumina’s tribology is sensitive to surface finish; very low surface roughness (for example, reported Ra at or below 0.02 micrometers) is associated with improved wear behavior.
Zirconia (ZrO2): tougher, but with its own trade-offs
- Often reported with more than 97% purity
- Known for higher fracture toughness and flexural strength compared to alumina in many formulations
- Wear resistance can be inferior to alumina in some pairings
- Exposure to bodily fluids can be associated with changes tied to phase transformation (tetragonal to monoclinic), which can affect properties
- Used in load-bearing components and as coatings to improve wear behavior in certain bearing systems
Calcium phosphates (CaP): closest to bone chemistry
Calcium phosphates are widely used due to biocompatibility, bioactivity, osteoconductivity, and non-immunogenicity. Importantly, calcium phosphates are the main inorganic component of hard tissues; natural bone is about 70% hydroxyapatite by weight.
The core limitation is mechanical: calcium phosphates can be brittle and have low fatigue resistance, so they are often combined with other materials (metals or polymers) or used where loads are modest.
Hydroxyapatite (HA)
- Chemical formula: Ca10(PO4)6(OH)2
- Intrinsically osteoconductive, serving as a scaffold for bone cells
- Commonly used as coatings on metal implants and in bone graft substitutes
Tricalcium phosphate (TCP)
- More soluble than HA and generally more resorbable
- Often used as a bone defect filler or as a coating because bulk TCP is mechanically weak
Bioactive glasses and glass-ceramics
Bioactive glasses are multicomponent oxide glasses, often silicate-based. A famous example is Bioglass 45S5 with composition (wt%): 45% SiO2, 24.5% Na2O, 24.5% CaO, 6% P2O5.
They form a hydroxycarbonate apatite layer in body fluids, supporting bonding and healing, but they tend to be mechanically weak. Glass-ceramics are created by controlled crystallization (“ceramming”) and usually have better mechanical properties than the parent glass, which is why many dental restorative ceramics fall into glass-ceramic families.
Calcium silicate ceramics in dentistry (endodontics)
Calcium silicates (including materials related to Mineral Trioxide Aggregate, MTA) play a major role in endodontics. MTA is often described as a gold standard for certain endodontic treatments, used for root repair, apical filling, perforation sealing, and as part of regenerative approaches.
How Bioceramics Are Made: From Powder to Implant
While formulations vary, many bioceramics share a common manufacturing backbone.
General fabrication workflow
- Powder processing (preparation and refinement of raw materials)
- Shaping/forming of the green body (the unfired shaped part)
- Drying and binder removal (removing moisture and organics)

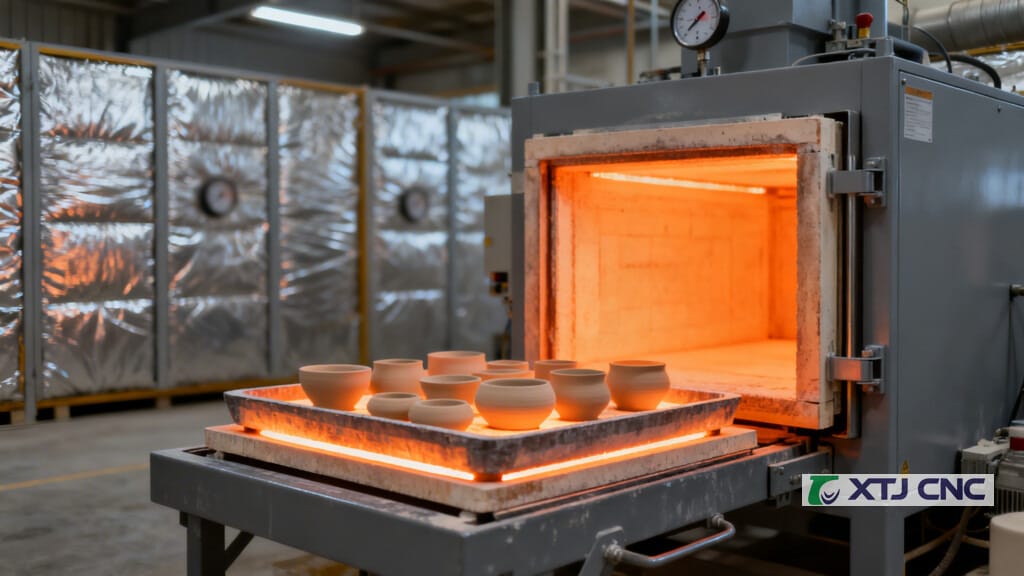

- Sintering (densification through heat treatment)
Conventional sintering (the traditional approach)
Conventional sintering often uses temperatures above 1000 degrees C, relying on diffusion processes that reduce porosity and increase compactness.
Examples of typical sintering temperatures:
- Alumina: 1600 to 1800 degrees C
- Dense hydroxyapatite: up to 1300 degrees C
Trade-offs: high-temperature sintering can increase energy use and can trigger phase transformations, thermal stresses, and cracking risks.
Hot Isostatic Pressing (HIP)
HIP can densify ceramics at lower temperatures in some systems (for example, HA at about 900 degrees C), helping reduce unwanted phase formation that can occur at higher temperatures. HIP is also used to form dense, adherent coatings.
Cold Sintering Process (CSP)
Cold sintering is a low-temperature densification approach, often room temperature to 300 degrees C, using pressure plus a transient liquid phase to accelerate diffusion. Its promise in bioceramics manufacturing includes lower energy cost and the ability to incorporate temperature-sensitive functional components.
Coatings: plasma spraying and others
Because many bioactive ceramics are mechanically weaker in bulk, coatings are common.
- Plasma spraying can apply hydroxyapatite coatings while keeping the metal substrate relatively cool (often cited as below 300 degrees C). Typical HA coatings are about 40 to 60 micrometers thick with low residual porosity.
- Other methods include electrophoretic deposition, sputtering (thin films around 1 micrometer), flame spraying, dip coating, and enameling.
Additive manufacturing (3D printing) for complex scaffolds
Additive manufacturing enables complex porous architectures and patient-specific forms. Techniques include selective laser sintering, fused deposition modeling, vat photopolymerization (SLA/DLP), and direct ink writing (robocasting). These approaches are especially important for scaffolds where porosity, pore size, and interconnectivity drive biological performance.
Pros and Cons: Bioinert vs Bioactive vs Resorbable Bioceramics
Bioinert Advantages
- Excellent chemical stability and wear resistance (material-dependent)
- Suitable for load-bearing components (for example, alumina and zirconia joint parts)
- Long-term predictable performance in body fluids
Bioinert Disadvantages
- Minimal biological bonding; fixation often relies on morphology and design
- Stiffness mismatch can contribute to stress shielding concerns in broader implant system design
- No active promotion of tissue integration
Bioactive Advantages
- Direct bonding to bone and sometimes soft tissues
- Can promote earlier stabilization and improved integration
- Stimulates beneficial cellular responses for healing
Bioactive Disadvantages
- Often mechanically weaker in bulk, commonly used as coatings
- Fracture toughness limitations for large load-bearing shapes
- More complex manufacturing and quality control requirements
Resorbable Advantages
- Designed to be replaced by natural tissue, supporting regeneration
- Can reduce long-term foreign material burden
- Eliminates need for removal surgery in many cases
Resorbable Disadvantages
- Not suitable for high load-bearing due to low mechanical strength
- Degradation rate must match healing and remodeling to avoid premature loss of support
- Complex dissolution kinetics can be difficult to predict and control
Frequently Asked Questions
What are bioceramics used for most often?
They are commonly used for hard-tissue applications, especially dental restorations and endodontic materials and orthopedic implants (including joint components, coatings, and bone graft substitutes). Dental uses represent about 42% of total bioceramics applications in one widely cited market breakdown.
Are bioceramics always “bioactive”?
No. Many clinically important bioceramics are bioinert (minimal interaction), such as alumina and zirconia. Others are bioactive (bond to tissue), and others are resorbable (gradually replaced). The biological response category depends on the specific material and its intended function.
Why are ceramics brittle if they are so strong?
Ceramics can be extremely strong in compression and very hard, but they tend to have lower tolerance for tension and crack propagation. That brittleness is a central design challenge for implants and is one reason coatings and composites are common.
What pore size is needed for bone ingrowth in porous bioceramics?
For porous inert implants designed for bone ingrowth, pores generally need to be larger than 100 to 150 micrometers to support viable tissue and blood supply. Pores larger than 300 micrometers are often associated with better vascularization and new bone formation in scaffold design guidance.
How are bioceramics tested for biocompatibility?
Biocompatibility is commonly evaluated with in vitro cytotoxicity and cell response testing (for example using osteoblast-related cells), guided by standards such as ISO 10993-1 for biological evaluation of medical devices. In vitro bioactivity testing may reference standards such as ISO 10993-14 using simulated body fluid.
