- Specify the look you want by controlling grain direction, grit progression, pressure, and speed; small parameter changes can create visible defects and rework.
- Use a grit progression instead of jumping grits; for stainless steel, a 3-step sequence of 120, then 240, then 400 is commonly recommended for consistent linear patterns.
- Keep grain direction consistent; directional variation beyond 5 degrees can create patchy surfaces, while tighter control (around plus or minus 3 degrees) supports premium cosmetic results.
- For repeatability across batches, CNC and robotic brushing standardize pressure, speed, and path, reducing operator-driven variation.
- Always plan for post-brushing cleaning and protection (rinsing, air blasting, ultrasonic cleaning, clear coat, anodizing, passivation) if corrosion resistance and appearance retention matter.
Brushed metal shows up everywhere: laptop enclosures, appliance panels, elevator interiors, medical equipment, automotive trim, and countless CNC-machined parts. It looks premium, feels intentional, and (when done correctly) stays looking good longer in real-world handling.
The brushing finish process is a controlled mechanical surface treatment that creates fine, uniform, typically unidirectional (parallel) linear “grain” lines on a surface. Unlike random scuffing, brushing is engineered: abrasive tools contact the surface under relatively low cutting pressure, often moving away from edges toward flatter surfaces to control edge effects. Done well, brushing removes the original surface layer to eliminate minor pits and casting marks, deburrs and rounds edges, and delivers a homogenous satin-like matte appearance that diffuses light for a sophisticated look.
This guide explains what brushed finish really means, how the process works, where it fits among other surface finishing options, and how to choose between manual, automated, CNC, and robotic brushing.
What a Brushed Finish Is (and What It Is Not)
A brushed finish is defined by a fine, uniform, parallel line pattern (often called “grain”) created mechanically using abrasive media. The standard aesthetic target is a unidirectional linear pattern that looks consistent across the entire surface area.
What it is:
- A controlled, mechanically generated set of parallel micro-scratches that form a homogenous satin-like or matte appearance.
- A practical way to visually blend small defects, hide minor scratches, and reduce the visibility of fingerprints in many applications.
- Often a functional finishing step that also cleans the surface, deburrs features, and rounds edges, typically without significantly changing product dimensions.
What it is not:
- Not a random scuffed surface. Decorative brushing is skill-sensitive, and inconsistent technique can create uneven lines, cross-hatching, or discoloration.
- Not a heavy stock-removal operation. Brushing is usually intended to remove only a thin surface layer and refresh the appearance without meaningful dimensional change.
- Not inherently “non-directional.” Brushing creates an anisotropic texture, meaning properties differ depending on the axis relative to the grain lines, including how light reflects.
How the Brushing Finish Process Works (Principles and Surface Effects)

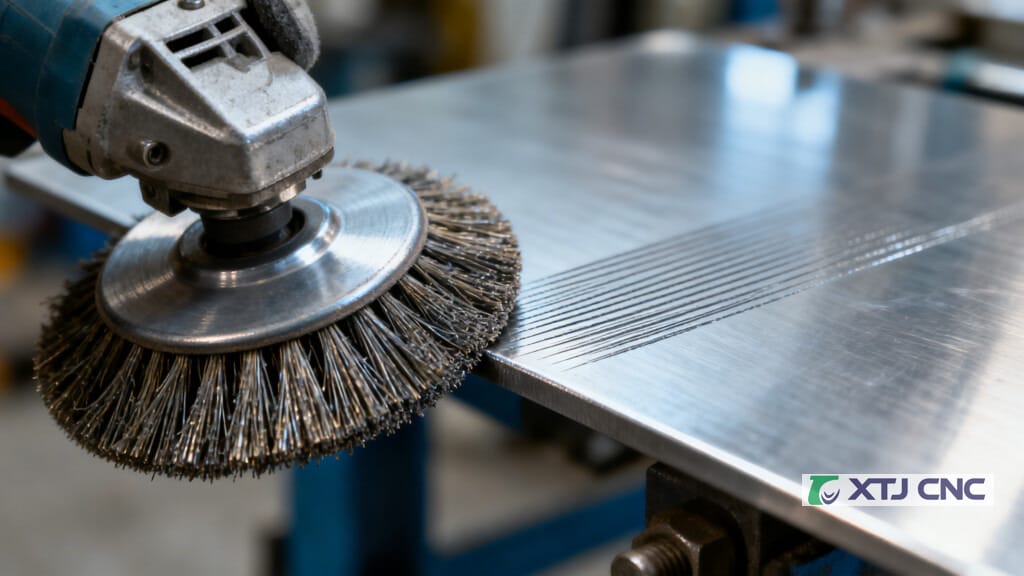

At its core, brushing is mechanical abrasion. An abrasive belt, brush, pad, or non-woven wheel contacts the workpiece and removes a thin surface layer under relatively low cutting pressure (compared with aggressive grinding).
What the abrasive action does to the surface
- Surface layer removal: the process strips the original top layer to eliminate minor defects such as pits and casting marks, effectively “resetting” the surface appearance.
- Texture formation: the abrasive creates aligned micro-scratches. When those scratches are parallel and consistent, they become the visible “grain.”
- Light diffusion: the linear pattern diffuses reflection, reducing glare and producing a satin visual effect.
- Anisotropy: because scratches are aligned, the surface behaves differently depending on direction (including optical reflection and other direction-dependent characteristics).
- Edge conditioning: brushing often deburrs and rounds edges and cleans surfaces while avoiding significant dimensional change.
Why controllability matters
Brushing output quality depends heavily on controllable variables:
- Contact pressure
- Speed (belt speed or brush RPM)
- Grain direction and overlap
- Brush type and abrasive selection
- Contact angle and fixturing stability
- Cleanliness and contamination control
This is also why many manufacturers struggle with inconsistent finishes. One reported statistic: 73% of small-scale manufacturers struggle with inconsistent brushed finishes, which can lead to returns and warranty claims.
Where Brushing Fits Among Surface Finishing Options (Positioning and Use Cases)
Brushing is frequently used as an intermediate or final surface treatment when the goal is a directional aesthetic with practical functional benefits.
Common reasons to choose brushing:
- Corrective function: remove or mitigate small imperfections before a final appearance requirement.
- Functional finish: deburring, cleaning, and edge blending combined with cosmetic improvement.
- Scalability: ranges from manual finishing to automated and robotic cells depending on volume and repeatability needs.
- Geometry accommodation: abrasive filament brushes and conformable non-woven abrasives can follow irregular geometries better than rigid tools.
- Repeatability requirements: brushing is often paired with CNC and automation when identical appearance across parts is required.
Key tradeoff to understand:
- Directionality constraint: the finish demands strict grain direction control. Direction mistakes are visually obvious and difficult to hide.
- Risk tradeoff: improper setup or handling can create uneven lines, patchiness, or discoloration, especially in decorative applications.
Brushing Methods and Techniques (Manual, Semi-Automated, CNC, Robotic)

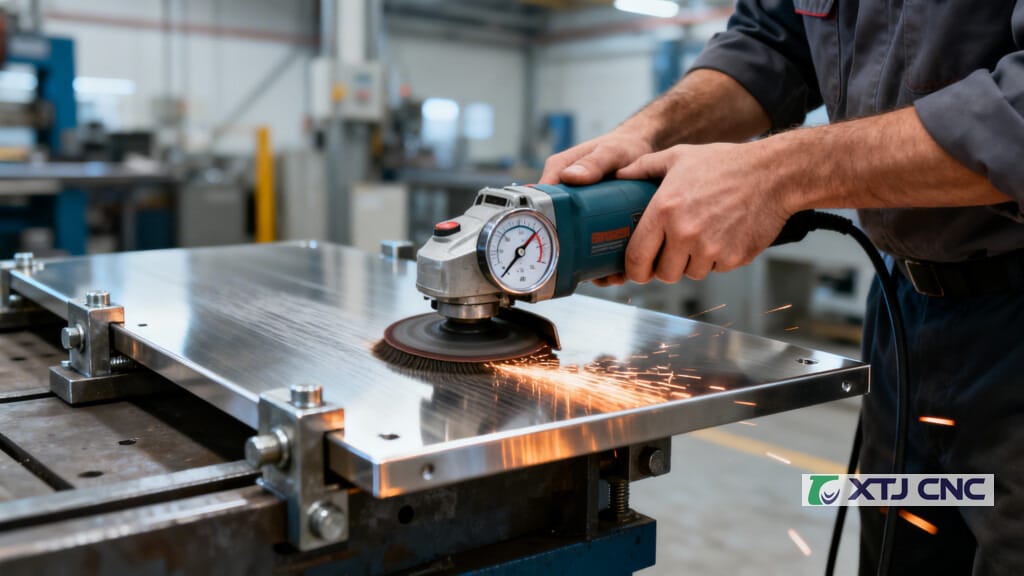

Manual brushing
Manual brushing is commonly performed with manual belt grinders. Some setups include digital pressure monitoring to improve consistency.
Where manual brushing fits best:
- Prototypes and low volumes
- Jobs needing maximum flexibility
- Quick iteration when parts change frequently
Limitations and risks:
- High dependence on operator skill, especially for decorative grain.
- Greater likelihood of uneven lines, cosmetic variation, and direction drift if technique varies.
- Still governed by the same control variables as automation: pressure, speed, brush selection, and direction.
- Fixturing matters. A part that shifts or a hand that wavers shows up immediately in the grain.

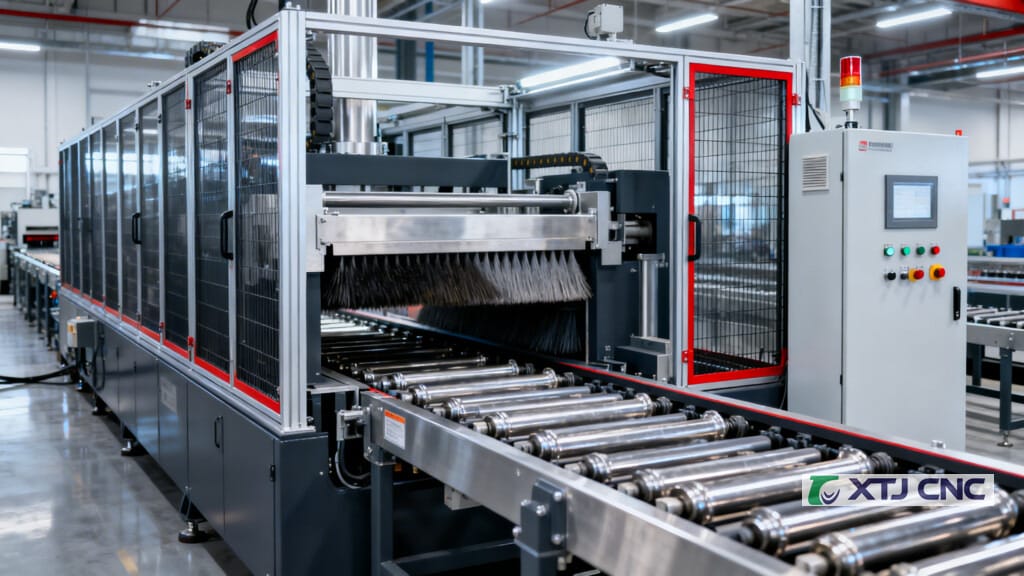

Semi-automated and automated brushing
Semi-automated systems may use directional controls, while fully automated systems can include robotic finishing cells with quality feedback.
Why automation is used:
- Efficiency and consistency: standardizes pressure, speed, and path to reduce variability.
- Safety: reduces manual exposure to abrasive contact, dust, and noise.
- Throughput: better suited to higher production volumes and consistent cosmetic requirements.
- Integration: can be built as a finishing cell coordinated with upstream and downstream operations.
Automation also reflects broader industry trends (2023 to 2026): increased adoption of automated brushing to improve throughput, reduce operator variability, and support scalable post-processing, including for custom and additively manufactured parts.

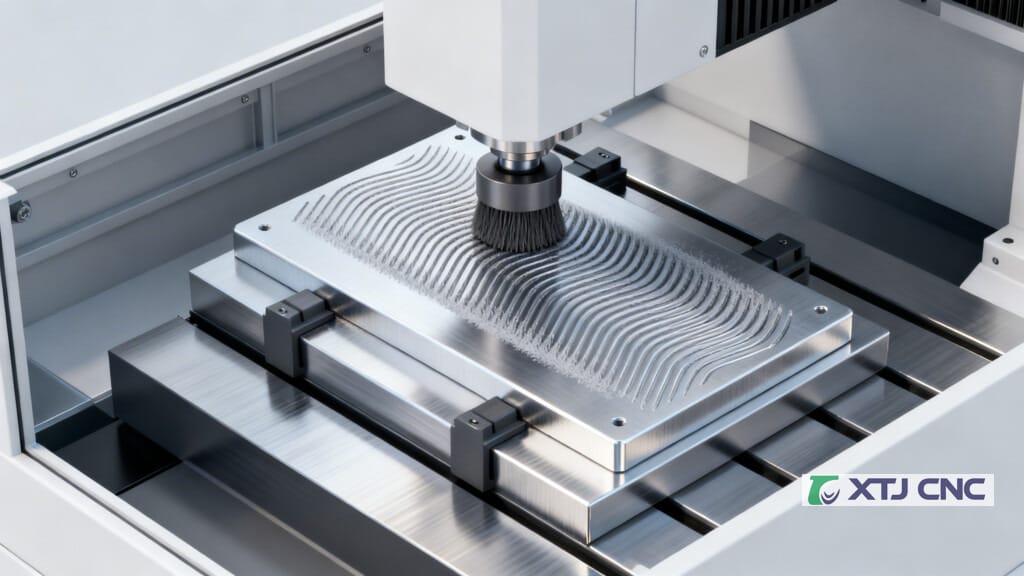

CNC brushing (precision brushing)
CNC brushing uses programmed toolpaths and controlled process parameters to deliver high precision and repeatability.
Why CNC brushing is valuable:
- Tight control of pressure, speed, overlap, and contact conditions.
- Strong management of directionality, especially across wide faces or complex surfaces.
- Reduced risk of visible inconsistencies that commonly occur with manual decorative brushing.
- Process documentation: supports “recipes” for brush type, speed, pressure, and path so batches stay consistent.
Best fit:
- Cosmetic standards are strict
- Batch-to-batch consistency matters
- Customers expect parts to match previous builds

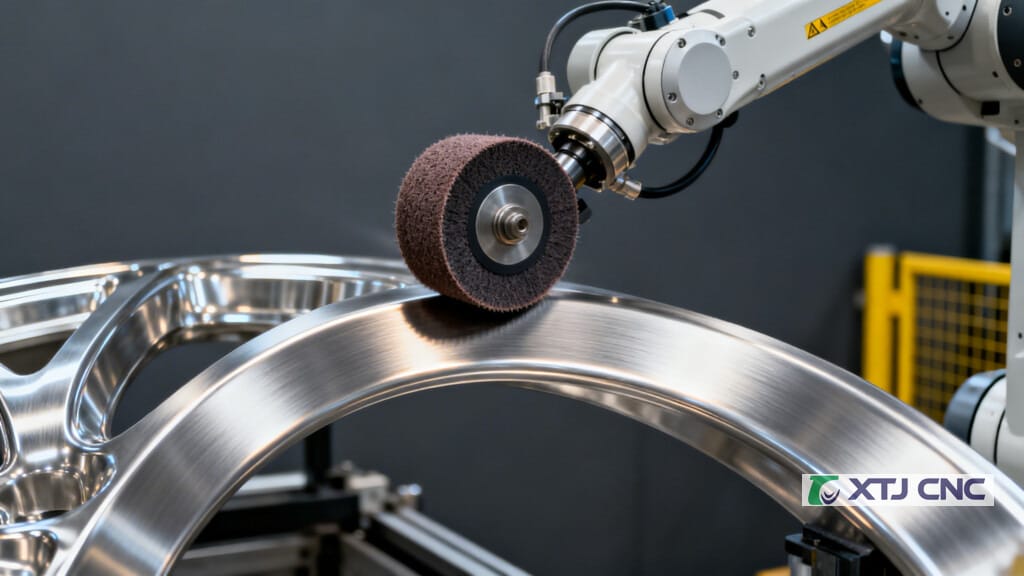

Robotic brushing (complex shapes and consistent contact)
Robotic brushing is widely used with highly conformable non-woven abrasives (such as those in the Scotch-Brite product family) because compliance helps maintain contact across variable geometry.
Common robotic applications include:
- Robotic deburring
- Robotic weld grinding and blending
- Robotic satin finishing and polishing
- Robotic cleaning and coatings removal
Primary benefits cited for robotic finishing include increased productivity, improved consistency, and cost savings, particularly when geometry is complex and manual labor would be inconsistent or difficult to scale.

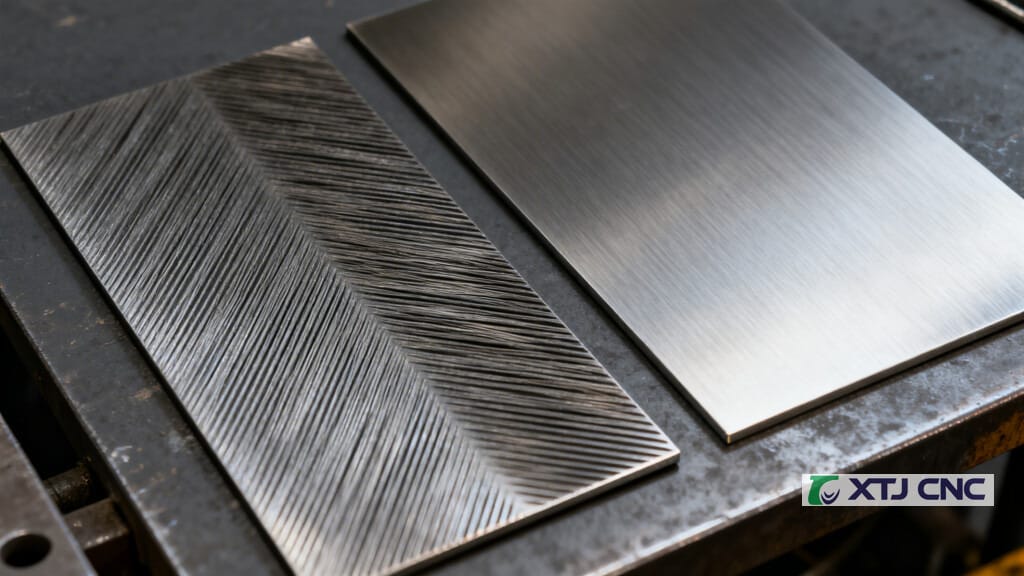

Belt Sanding vs Abrasive Brushing (Choosing the Right Approach)
Belt sanding and abrasive brushing are often used together, but they serve different purposes.
Belt sanding
- Typical role: often the first step for aggressive material removal.
- Pattern outcome: creates a coarse, linear grain and establishes a basic directional pattern.
- Limitation: lacks the fine control needed for high-cosmetic surfaces.

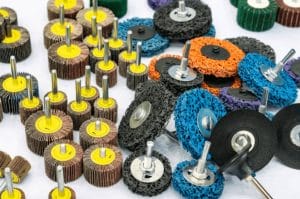

Abrasive brushing (rotary filament brushing)
- Tool type: rotating brushes with abrasive filaments.
- Texture outcome: a softer, more uniform brushed texture than coarse belt sanding.
- Geometry benefit: filament flexibility helps conform to irregular shapes for more consistent finishing.
How to choose:
- If you need higher removal rate and fast defect knockdown, start with belt sanding.
- If you need uniform cosmetics, edge blending, and more forgiving contact on curves and features, use abrasive brushing.
- In many real production sequences, belt sanding precedes abrasive brushing when both defect removal and premium appearance are required.
Pros and Cons of a Brushed Finish (Real-World Tradeoffs)
Brushing is popular because it balances aesthetics, function, and cost, but it is not a universal solution.
Advantages
- Premium aesthetics: satin-like, modern, homogenous appearance with controlled grain.
- Conceals handling marks: helps hide minor scratches, smudges, and fingerprints in many uses.
- Functional improvement: deburring, cleaning, edge rounding with minimal dimensional impact.
- Potential durability benefits: can strengthen surfaces and improve resistance to wear, corrosion, and oxidation depending on application and subsequent treatments.
- Often cost-effective: generally more economical than full polishing and can reduce production costs.
- Improves adhesion: surface conditioning can improve adhesion for paints and coatings.
- Flexible deployment: can be applied across corners, edges, and narrow areas, and is often easier to repair or touch up than some coated finishes.
Disadvantages
- Not ideal alone for high corrosion resistance needs: brushing by itself may not be sufficient where corrosion performance is critical.
- Directional constraint: if a non-directional look is required, brushing may be the wrong aesthetic.
- Tolerance sensitivity: tight tolerance requirements can conflict with material removal, even if it is relatively small.
- Process control is critical: small parameter variations can lead to rework and customer complaints.
- Wear and consumables affect consistency: bare metal finishes are never as consistent as painted surfaces because belts, wheels, and rolls wear over time.

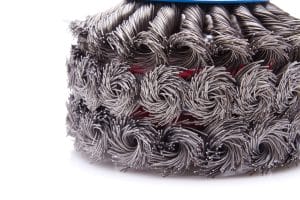

- Tooling risk: steel wire brushes can leave fine scratches if not selected and used correctly.
Notable data point: In internal tests reported by ptsmake, brushed aluminum panels resisted visible scratching up to 30% longer than polished counterparts.
Quick Reference: Brushed Finish Numbers and Process Targets
Below is a practical snapshot of commonly cited brushed-finish measurement ranges and control targets used in production.
Quick Reference
| Stainless steel grit progression | 120 then 240 then 400 – A 3-step sequence recommended for consistent linear patterns |
| Stainless belt pressure | 0.15 MPa plus or minus 0.02 MPa – Pressure is critical for uniform scratch depth |
| “Wavy texture” risk threshold | Above 0.25 MPa – Pressure variation can create wavy texture |
| Directional consistency target | About plus or minus 3 degrees – Variation above 5 degrees can look patchy |
| 304 stainless belt speed | 20 to 25 m/s – Balances removal rate with heat generation |
| Brush rotational speed (general) | 1,500 to 2,000 RPM – Too high can overheat or damage media |

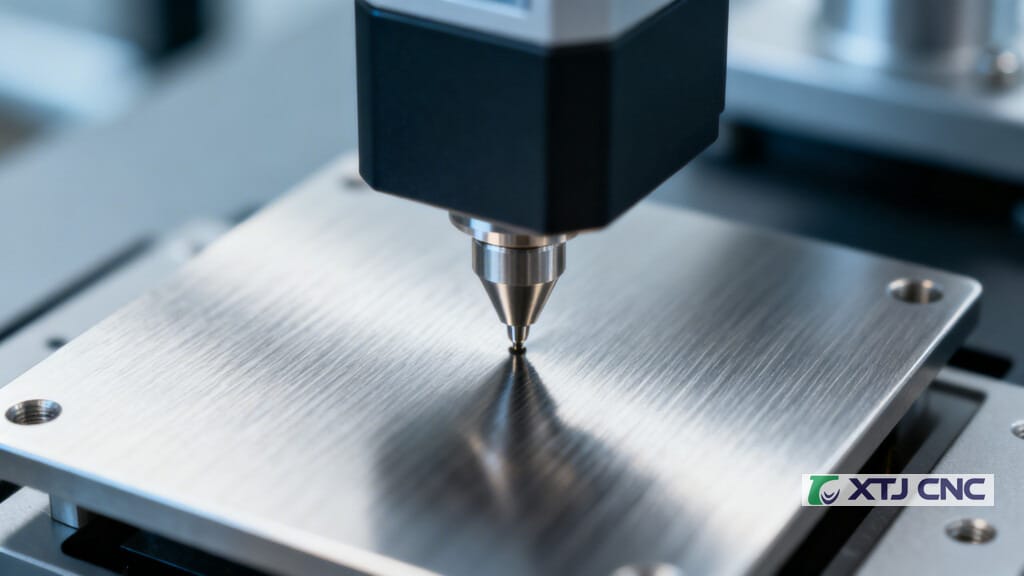

| Professional brushed stainless roughness | Ra 0.05 to 0.1 micrometers – Reported for high-quality brushed stainless outcomes |
| General brushed surface roughness | Ra 0.2 to 1.0 micrometers (can be higher) – Some references cite 2 to 10 micrometers depending on method |
| Stainless No. 3 finish roughness | 36 to 58 microinches Ra – Measured with profilometer |
| Stainless No. 4 finish roughness | 29 to 40 microinches Ra – Common architectural and appliance finish range |
| No. 4/Dairy finish roughness | 18 to 31 microinches Ra – Used for sanitary equipment; associated with 3-A expectations |
| 3-A sanitary requirement (typical) | 32 microinches (0.8 micrometers) Ra or less – For product-contact surfaces in food and pharma equipment |
Practical Quality Tips (Parameters, Consumables, and Habit Traps)
If a brushed finish is failing inspection, the root cause is often not “the material,” but variation in controllable inputs.
Grit progression and belt condition
- Do not skip grit steps. Skipping steps can leave uneven scratch patterns that show through the final grain.
- For stainless, a common recommendation is 120, then 240, then 400.
- Monitor belt condition. One guideline suggests replacing abrasive belts after 90 minutes of active use to avoid inconsistent cut as media wears.
Pressure, direction, and angle
- Keep pressure stable; pressure variations can create wavy texture.
- Keep grain direction consistent, especially across large cosmetic faces.
- Maintain a correct contact angle to prevent cross-hatching. Guidance for 304 stainless includes a 15 to 20-degree contact angle relative to the longest edge to keep scratch depth consistent and avoid unwanted patterns.
Contamination control
- Deep gouges can be caused by contaminated belts or debris embedding in fresh abrasive.
- Use compressed air blast and thorough cleaning between grit changes.
- For stainless steel, avoid cross-contamination from carbon steel particles; it can contribute to after-rust. Keep stainless brushes clean and stored away from carbon steel work areas.
A useful data point: Proper contamination control and belt maintenance can boost fingerprint resistance by up to 19% (Hotean).
Post-Brushing Treatments and Considerations
Brushing creates the texture, but what happens after brushing often determines how long the finish holds up.

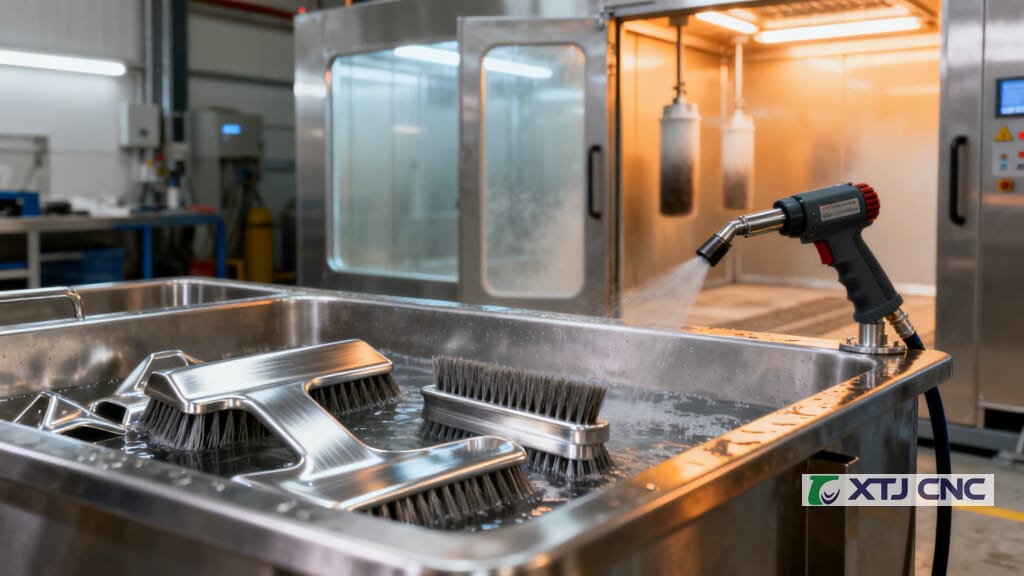

Cleaning and residue removal
Fine particles and debris should be removed to prevent contamination and unwanted scratches:
- Rinsing
- Air blasting
- Ultrasonic cleaning
Depending on the process, rinsing water can contain acids, alkalis, solvents, and surfactants, so handling and disposal should follow facility and regulatory requirements.
Protective coatings
To protect the finish from oxidation, fingerprints, and tarnishing:
- Clear coats and lacquers
- Powder coating
This is especially helpful on softer metals like brass and copper, and is also used on brushed aluminum in many consumer-facing products.
Functional enhancements
- Anodizing (aluminum): improves corrosion resistance and stabilizes the surface.
- Passivation (stainless steel): chemical treatment (often nitric or citrus acid) that forms a protective passive film and removes free iron without removing significant base metal. ASTM A967 is commonly referenced for passivation.
- Pickle passivation: more aggressive treatments (including nitric-hydrofluoric acid systems) can remove metallic contamination and heat-treat scale and may improve smoothness in Ra readings; ASTM A380 is commonly referenced for cleaning, descaling, and passivating stainless.
Frequently Asked Questions
What is the brushing finish process?
It is a controlled mechanical abrasion process that uses abrasive belts, brushes, pads, or non-woven media to create fine, uniform, typically unidirectional linear grain lines. It removes a thin surface layer to refresh appearance, eliminate minor defects, and often deburr edges.
Does brushing significantly change part dimensions?
In most finishing applications, brushing is intended not to significantly change product dimensions, even though it removes a thin surface layer. If tolerances are extremely tight, however, the material removal still needs to be accounted for.
Why does brushed metal hide fingerprints and scratches better?
The directional micro-scratch pattern diffuses reflected light, reducing glare and masking minor handling marks. Performance depends on process control and cleanliness; contamination control and belt maintenance can measurably improve fingerprint resistance.
What is the difference between belt sanding and abrasive brushing?
Belt sanding is often used first for more aggressive material removal and creates a coarse linear pattern. Abrasive brushing uses rotating filament brushes to produce a softer, more uniform texture and can better conform to irregular geometry.
How do I specify a brushed finish for quality control?
Beyond describing the grain direction and cosmetic intent (such as “unidirectional satin”), specify measurable surface roughness targets (Ra in microinches or micrometers), define inspection directionality, and document a process recipe (grit progression, pressure, speed, and tool type). Profilometer readings are commonly used for verification.
A great brushed finish is not an accident. It is the result of controlled abrasion that replaces a flawed or inconsistent surface layer with a uniform, directional grain that looks premium and works hard in real use. The biggest differentiators are consistency and discipline: grit progression, stable pressure, tight direction control, clean consumables, and the right method selection (manual, automated, CNC, or robotic) for the volume and cosmetic standard.
