Electroplating: Know More About the Process of Aluminium Electroplating

Electroplating can make an ordinary metal surface behave like something far more expensive, more corrosion-resistant, more conductive, or more wear-tolerant. But when the coating metal is aluminium, the story changes: aluminium electroplating is not “standard plating with a different bath.” It is a specialized, non-aqueous electrodeposition process built around aluminium’s unique electrochemistry and its stubborn, fast-forming oxide film.

In this guide, you’ll learn what electroplating is, why aluminium is unusually difficult to plate, which electrolyte families make aluminium deposition possible, and how preparation, cell setup, and operating parameters determine whether the coating adheres and performs. You’ll also see the real performance claims driving industrial adoption, including high-purity aluminium deposits (reported at 99.99% and above), long salt-spray performance at thin thicknesses, and a path away from hazardous legacy coatings.

Electroplating Fundamentals

Electroplating is a surface-finishing process that uses electrical current to reduce dissolved metal cations and deposit them as a thin, coherent metal coating on a conductive object (the cathode). In practical manufacturing terms, electroplating is one of the most controllable ways to change surface properties without changing the bulk material.

What electroplating is used for

Electroplating is commonly selected to achieve one or more of the following:

• Corrosion resistance
• Wear resistance
• Improved appearance (brightness, color, reflectivity)
• Increased hardness
• Better electrical conductivity
• Surface preparation for later treatments (for example, a base layer before another coating)

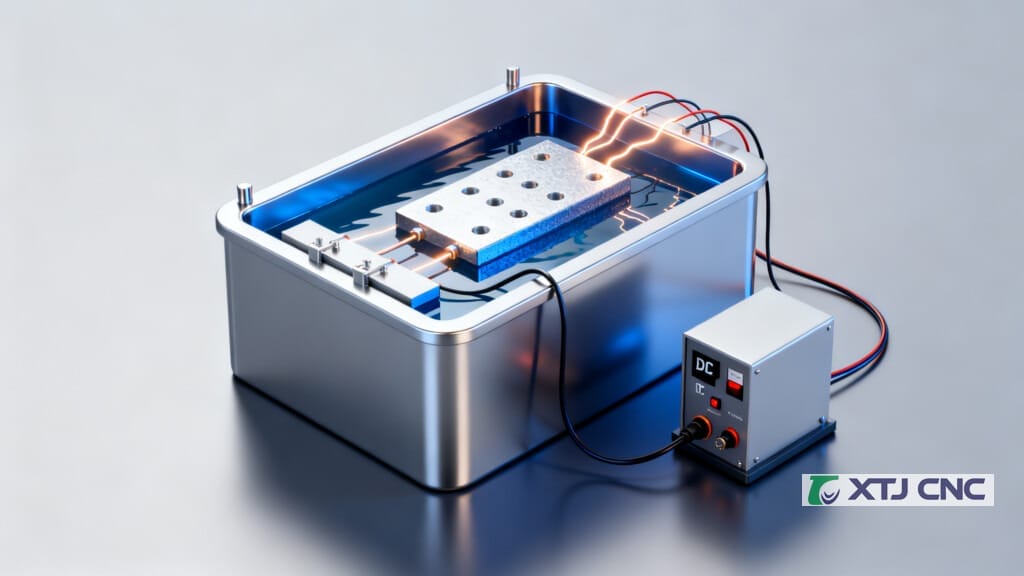

The core components of an electroplating cell

Even though aluminium plating uses special chemistry, the physical “cell” still follows classic electroplating architecture:

• Electrolyte bath: contains the plating species (dissolved metal ions or metal-containing complexes) and often additives.
• Anode: the positive electrode where oxidation occurs; it may be the coating metal (sacrificial) or an inert material, depending on the system.
• Cathode (workpiece): the conductive part to be coated; reduction happens here and the deposit forms on its surface.
• DC power supply: provides direct current and maintains the necessary potential difference to drive the electrochemical reactions.

The basic mechanism: transport and reduction

In the bath, metal-containing species migrate through the electrolyte under the electric field and diffusion. At the cathode, they gain electrons (reduction) and become solid metal, building a coating. A general representation is:

M^(z+) (solution) + z e⁻ becomes M (metal)

Why Aluminium Is Uniquely Difficult to Electroplate

Aluminium electroplating deposits a layer of pure aluminium or aluminium alloys onto a substrate, but it is not “conventional” electroplating in the sense used for nickel, copper, zinc, or tin from aqueous baths.

Aluminium’s reduction potential makes water-based plating fail

Aluminium has a highly negative standard reduction potential of about −1.67 V versus the Standard Hydrogen Electrode (SHE). In aqueous electrolytes, that creates a fundamental problem: water reduction produces hydrogen gas before Al3+ can be reduced to aluminium metal.

In other words, when you push the cathode negative enough to try to deposit aluminium, you typically end up generating hydrogen instead. This is why aluminium cannot be electrodeposited from aqueous solutions under normal electroplating conditions.

A related barrier is the very high hydration energy of Al3+ (around 45 eV), which further complicates deposition kinetics in water-based systems.

Aluminium’s oxide film blocks adhesion

Aluminium also rapidly forms a passivating oxide layer in air. That oxide is chemically stable and forms fast enough that it becomes the central adhesion challenge: if you do not remove or control it, subsequent coatings can blister, peel, or flake.

Practical implication: aluminium electroplating demands much more stringent pre-treatment than many familiar aqueous plating operations, because the oxide can reform quickly between steps.

Non-aqueous electrolytes are required

To avoid dominant hydrogen evolution and enable feasible aluminium reduction, aluminium electroplating relies on non-aqueous electrolyte systems such as:

• Ionic liquids (and related deep eutectic solvent systems)
• Molten salts
• Organic solvent-based electrolytes

Non-Aqueous Electrolytes Used for Aluminium Electrodeposition

Because water-based baths fail for aluminium, electrolyte selection becomes the heart of the process. The electrolyte must provide aluminium-containing species in a medium where aluminium reduction is feasible and water decomposition does not dominate.

1) Ionic liquids (ILs) and deep eutectic solvents (DESs)

Ionic liquids are salts that are liquid at or near room temperature (often below 100°C) and are composed entirely of ions. In aluminium R&D and commercialization, ionic liquids are a major focus area, and the number of scientific papers on aluminium and aluminium-alloy deposition in ionic liquids has increased significantly over the last decade.

Common aluminium-plating IL chemistry often uses chloroaluminate systems formed from AlCl3 mixed with an organic chloride salt (such as imidazolium chlorides). In these systems, “free” Al3+ is not typically the operating species; complex anions such as AlCl4− and Al2Cl7− play central roles. For acidic chloroaluminate ILs, Al2Cl7− is often described as the primary active species for reversible aluminium plating and stripping.

General IL characteristics that matter in process design include:

• Conductivity often cited in the 1.0 to 10.0 mS/cm range
• Viscosity that can range broadly (roughly 10 mPa·s to 500 mPa·s at room temperature), affecting mass transport
• A wide electrochemical window compared with water (water is about 1.2 V), with some IL examples reported above 4 V

Moisture control is critical: many IL systems are hygroscopic and can react with water, shifting chemistry and reducing plating reproducibility.

2) Molten salts

Molten-salt approaches have a long history in aluminium electrochemistry. The trade-off is temperature:

• Conventional molten-salt electrorefining can be above 1000°C
• Some binary or ternary mixtures (such as AlCl3-KCl-NaCl) can operate in the 100°C to 200°C range

Challenges include corrosivity, volatilization of reactive compounds (for example AlCl3), energy consumption, and materials constraints for tanks and cell hardware.

3) Organic solvent-based electrolytes

Organic solvent systems include ether-hydride baths and aromatic hydrocarbon (alkyl benzene) baths.

Examples from the literature include:

• Ether-hydride solutions developed by the National Bureau of Standards (NBS), using AlCl3 and LiAlH4 in diethyl ether.
• Alkyl benzene electrolytes using AlBr3 dissolved in solvents such as ethylbenzene, diethylbenzene, or toluene, reported to produce bright, fine-grained adherent aluminium coatings (for example around 0.013 mm thick) with cathode efficiencies reported in the 70 to 85% range.

A practical limitation is that many organic solvents introduce volatility, flammability, and toxicity concerns, making them less attractive for production compared with more stable, lower-volatility alternatives.

Surface Preparation for Aluminium

For aluminium electroplating, surface preparation is repeatedly identified as the most critical step, because it directly controls adhesion, appearance, and defect rate. Most plating failures (blistering, peeling, cloudiness, adhesion loss) are commonly traced back to pretreatment problems.

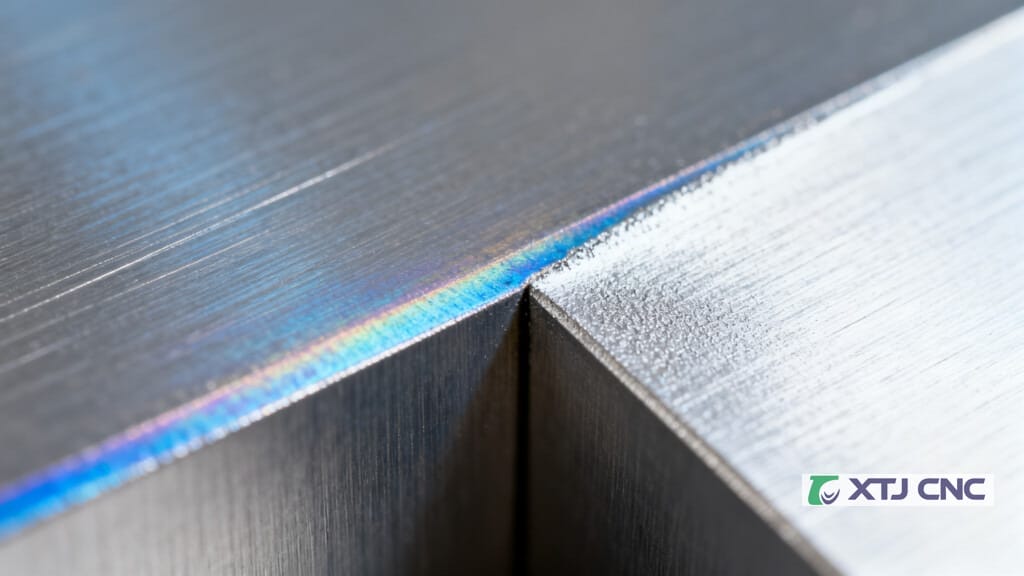

What you are fighting: oxide and impurities

• Native oxide forms rapidly in air and behaves like a barrier to metallic bonding.
• Alloying elements and impurities (for example silicon in alloys such as Al6082, or mixed impurities in recycled aluminium) can interfere with adhesion and cause localized defects.

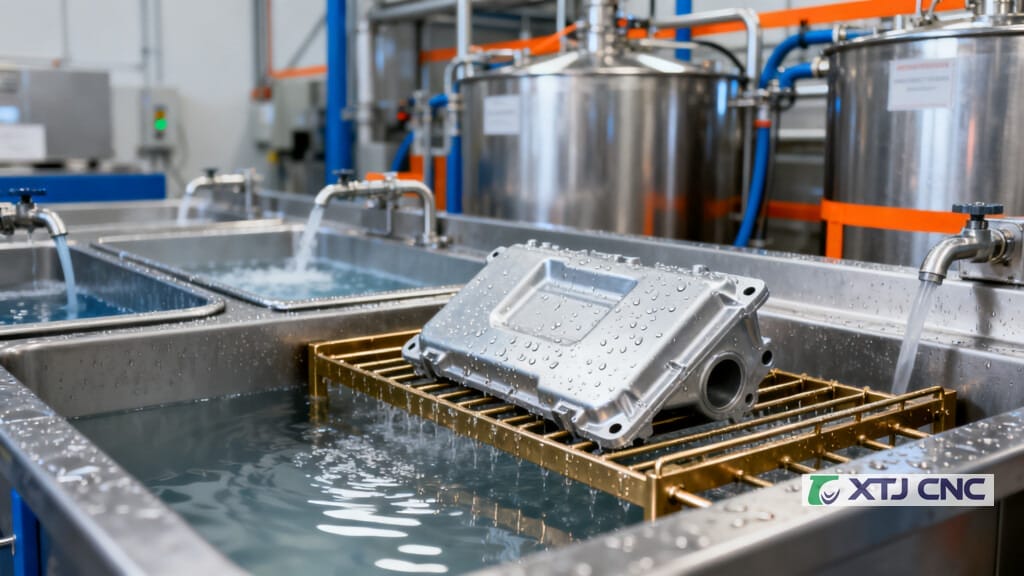

Typical pretreatment building blocks

While exact sequences vary by shop and alloy, the logic is consistent: establish a clean surface, remove oxide and smut, activate the surface, then move quickly into plating.

Common categories include:

Mechanical treatment (polishing/grinding)

• Used to achieve the desired roughness and remove gross imperfections.
• Example data from Al6082 research: unpolished samples reported Ra 0.40 µm and Rz 1.98 µm, while polished samples showed Sa 5.09 nm and Sq 6.55 nm, reflecting an extreme reduction in roughness.

Cleaning and degreasing

• Solvent degreasing removes oils and organic residues.
• Alkaline cleaning removes remaining soils; some processes use electrochemical degreasing.
• Rinsing between every step (often with deionized water) is emphasized to avoid contamination carryover.
• Example parameters reported in research on Al6082: ultrasonic cleaning at 65°C for 3 minutes; cathodic alkaline electrochemical degreasing at 25 V for 10 seconds.

Etching and deoxidizing

• Acid pickling/etching is used to remove oxides and smut (nitric acid is commonly referenced; HF may be used in specific protocols).
• Neutralization steps may follow (for example mild sulfuric acid).

Activation and undercoats (often zincate)

• The zincate process is widely cited: after cleaning, aluminium is immersed in an alkaline zinc salt solution; as oxide dissolves, a thin zinc film deposits by immersion. That zinc layer can serve as a base for subsequent plating.
• Double zincate (dissolve the first zinc film in nitric acid, then re-zincate) can produce a thinner, more uniform zinc layer with improved adhesion and corrosion performance.
• Disadvantages reported include potential blistering after heating and metal removal affecting tight tolerances.

The Aluminium Electroplating Process

At its core, aluminium electroplating deposits pure aluminium or an aluminium alloy onto a substrate using a DC-driven electrochemical cell. The difference is that the electrolyte is non-aqueous and the process window is tighter.

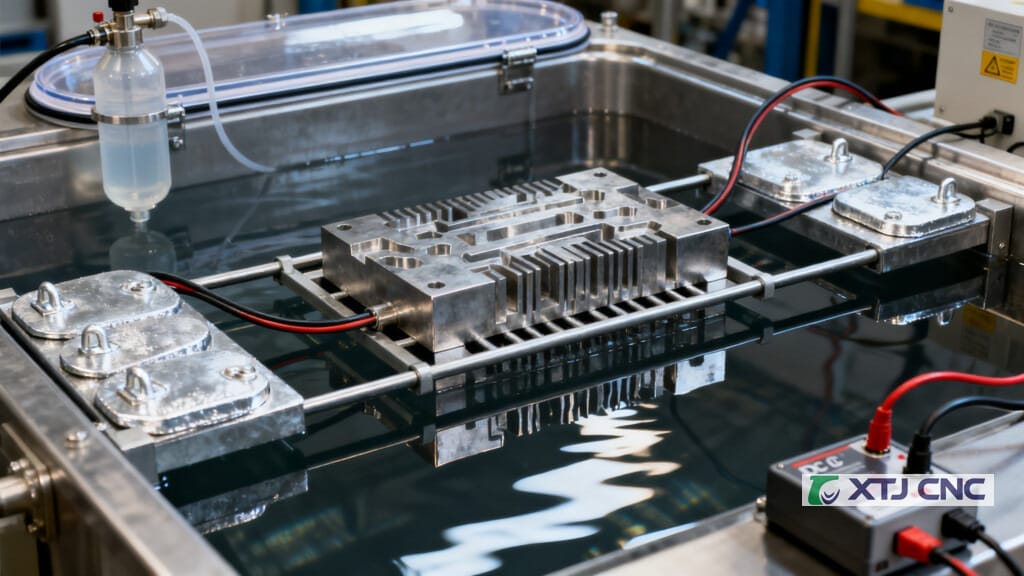

Cell setup essentials

• Electrolyte bath: non-aqueous electrolyte containing aluminium species (ionic liquids, molten salts, or organic solvent systems).
• Cathode: the workpiece; aluminium forms on this surface by reduction.
• Anode: the positive electrode; may be aluminium (sacrificial) or inert, depending on the bath chemistry and how aluminium species are replenished.
• DC power supply: provides the current and potential to drive deposition.

What happens at the cathode

Aluminium-containing species gain electrons and form metallic aluminium, building a coherent coating that can be thin or, in some systems, very thick. Aluminium electroplating is also described as “non-line-of-sight,” which helps coat complex geometries compared with line-of-sight processes such as some vapor-deposition methods (though good electrical contact and racking still matter).

Post-treatment

After deposition, standard post-plating steps are used to protect coating integrity:

• Rinsing to remove residual electrolyte chemicals and prevent contamination
• Drying to prevent spotting or corrosion
• Optional polishing, passivation, or sealing depending on the application

Electroplated aluminium can also be anodized. High-purity plated aluminium has been described as anodizing well due to reduced voiding, and anodizing is sometimes used to further enhance corrosion resistance or functional dielectric properties. Hard anodizing conditions are often referenced under MIL-A-8625 Type III Class 1, with hot deionized water sealing specified by time per thickness in some programs.

Operating Parameters That Control Deposit Quality

Aluminium electroplating is parameter-sensitive because the chemistry is specialized and often less forgiving than common aqueous baths. Shops that succeed treat the process as an engineered system with strict controls.

Electrical input: current density, voltage, and control mode

Current and voltage from the DC power supply determine reduction rate, nucleation behavior, and deposit formation. Current density is widely reported as a dominant lever controlling morphology, structure, and plating rate.

Practical example from electrodeposition literature (non-aluminium example but illustrates the principle): CoPt thick films showed an optimal condition around 100 mA/cm² for certain properties, while very high current density increased roughness dramatically and caused cracking. The takeaway for aluminium is the same: “more current” is not automatically “better coating.”

Temperature

Temperature influences electrolyte viscosity, stability, and deposit structure. Many ionic liquids have strongly temperature-dependent viscosity, impacting mass transport and surface morphology. Some aluminium-capable systems can operate near room temperature to moderately elevated temperatures, while molten salts may demand much higher temperatures depending on formulation.

Bath chemistry, additives, and moisture

• The chosen non-aqueous electrolyte family (ionic liquid, molten salt, organic solvent) dictates feasibility and behavior.
• Bath composition governs metal availability and any additive effects (brighteners, levelers, grain refiners), although highly reactive Lewis-acidic systems can make additive persistence challenging.
• Moisture control is crucial: trace water can decompose some electrolytes, trigger hydrogen evolution, and form insulating interphase layers that block deposition. Many industrial or research setups therefore use enclosed systems or inert gas atmospheres.

Agitation and mass transport

Agitation improves homogeneity and helps prevent localized depletion that can cause dullness, streaks, or burnt areas. Magnetic stirring, air agitation (oil-free), or mechanical circulation are commonly used depending on the cell and electrolyte constraints.

Thickness targets and geometry

• Aluminium electroplating is reported to allow thick deposits, with some sources describing controlled deposits up to 1000 µm in certain contexts.
• Typical corrosion-focused thickness can be much thinner. For example, an 8 µm aluminium coating has been reported to exceed 1,000 hours in salt spray testing under ASTM B-117 in specific commercial claims.

Performance Benefits of Electroplated Aluminium

When executed correctly, electrodeposited aluminium can deliver a combination of purity, corrosion protection, ductility, and temperature capability that motivates industrial adoption.

High purity and functional properties

Electrodeposited aluminium purity is reported at 99.99% Al and above in some commercial and research contexts. High purity contributes to:

• Strong corrosion resistance behavior
• High reflectivity
• Good electrical conductivity
• Lightweight surface performance (useful where corrosion protection is needed without heavy coatings)

Some published impurity breakdowns for high-purity electroplated aluminium cite contaminants such as iron measured in the tens of ppm range, which is dramatically lower than typical structural aluminium alloys.

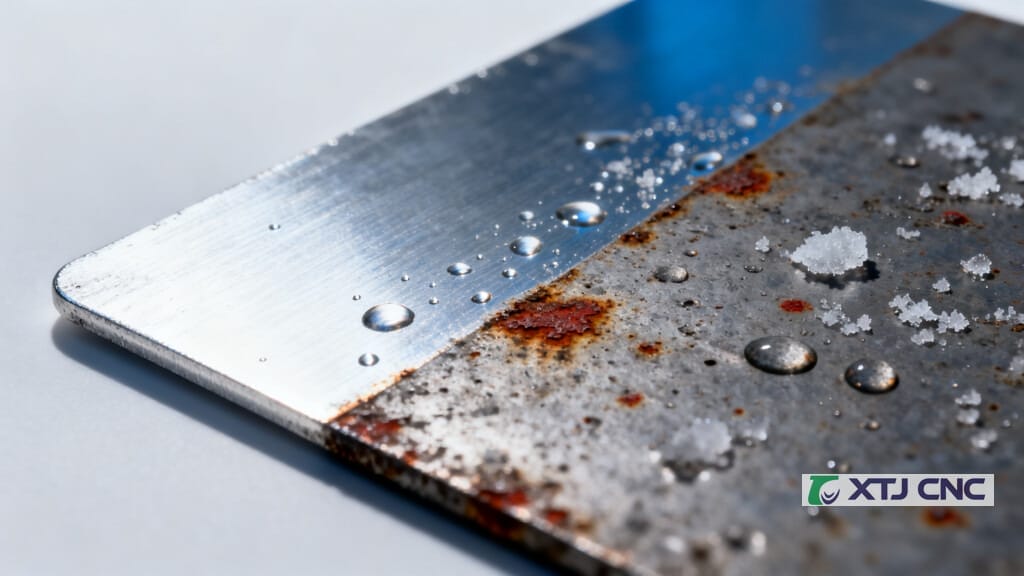

Corrosion resistance (and referenced test results)

Commercial claims for pure aluminium electroplating include accelerated-test outperformance versus coatings such as cadmium, nickel, zinc, tin, zinc-nickel, and tin-zinc.

Specific reported benchmarks include:

• 8 µm aluminium coating: more than 1,000 hours salt spray testing (ASTM B-117)
• 12 µm aluminium coating: 336 hours sulfur dioxide testing (ASTM G87)

Hydrogen embrittlement and high-strength steels

One notable claim from a proprietary aluminium electroplating process is the use of an electrolyte with no free hydrogen, described as eliminating hydrogen embrittlement in high-strength steel parts. This is particularly relevant where hydrogen embrittlement risk is unacceptable (for example in high-strength fastener applications).

Temperature capability and ductility

Electroplated aluminium is cited with functional temperature capability up to 1000°F (538°C), with some references also describing performance up to 400°C. This is contrasted with cadmium’s stated limit of about 450°F (232°C).

Additionally, electroplated aluminium is described as highly ductile, supporting post-plating forming or crimping without spalling or flaking.

Environmental, Health, and Compliance Considerations

A major industrial motivation for aluminium electroplating is replacement of hazardous legacy coatings.

• Pure aluminium coatings are described as non-toxic.
• Pure aluminium electroplating is described as RoHS and REACH compliant in relevant process contexts.
• Aluminium plating is positioned as an alternative to coatings associated with high environmental and health risk (cadmium and hexavalent chromium are frequently cited as targets for replacement).

From a regulatory perspective, electroplating operations also sit within broader industrial discharge frameworks. In the United States, EPA pretreatment standards for electroplating date back to 1979 (40 CFR Part 413), with metal finishing categorical pretreatment standards promulgated in 1983 (40 CFR Part 433), under authority of the Clean Water Act and the general pretreatment regulations (40 CFR Part 403). Practically, that means chemistry selection, rinse management, and waste handling are not just operational issues; they are compliance issues.
