What Is Bead Blasting and How Does It Work?

Bead blasting is one of those manufacturing processes that looks simple from the outside, but it earns its reputation in the details. Done well, it can turn a visually inconsistent, glare-prone machined surface into a uniform satin-matte finish while preserving critical dimensions and surface integrity.

At its core, bead blasting is a surface treatment technique that uses high-speed spherical media (beads) to clean, strengthen, and beautify materials. It is widely described as an efficient, non-destructive surface treatment technology and is classified under fine-grade media jet processing. The process itself is a controlled abrasion method: a workpiece is blasted with small spherical beads propelled by compressed air.

What makes bead blasting so valuable in modern manufacturing is what it does not do. Compared with more aggressive abrasive blasting, it is gentler and causes minimal material removal, which is why it is commonly used in high-precision industries like automotive, medical devices, and electronics. It is also frequently used as a downstream prep step before anodizing, painting, or electroplating, because it helps coatings adhere more consistently.

Beyond appearance, bead blasting can also deliver mechanical benefits. Spherical impacts can induce shallow compressive stresses (often cited around 20 to 50 MPa at roughly 20 microns depth), which may help fatigue life. And because it preserves surface integrity, it is even considered ideal for sensitive applications like optical components.

Bead Blasting Basics (What It Is and What It Does)

Bead blasting is primarily used to clean, smooth, or texture surfaces using high-pressure abrasive materials. But unlike grinding or sanding, it is not a cutting process in the traditional sense. Instead, bead blasting modifies the surface through repeated spherical impacts.

What actually happens to the surface?

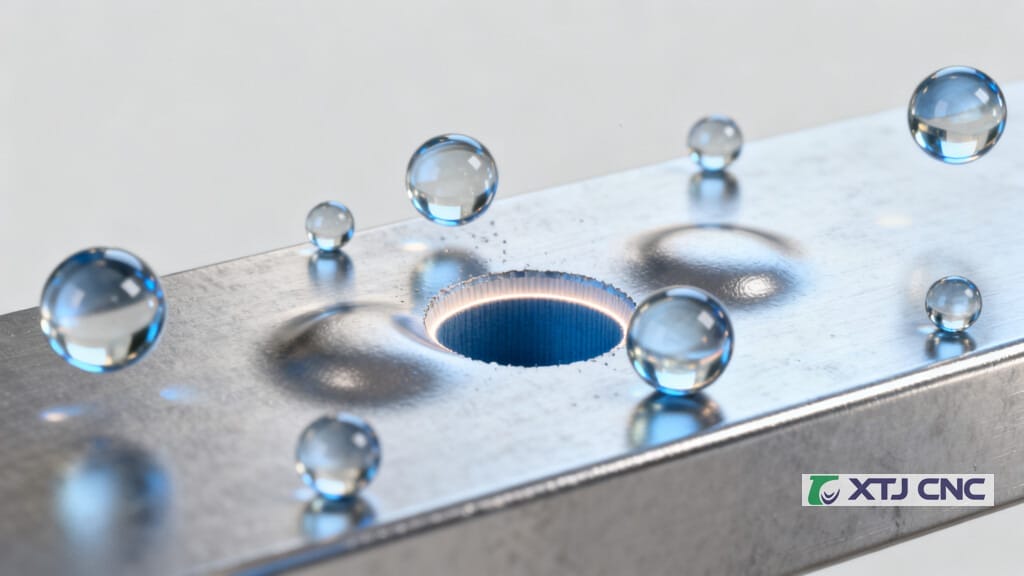

When rounded media hits a part, each impact creates a tiny dimple at the point of contact. During processing, thousands of these dimples form across the surface. As the work continues, overlapping indentations build up into a consistent fine texture, often called a bead blast texture.

This matters for two practical reasons:

• Aesthetic consistency: Overlapping micro-dimples create a uniform satin or matte appearance.
• Dimensional preservation: Because the media is spherical and the interaction is more “peening” than “cutting,” bead blasting typically causes minimal dimensional change compared with sharp angular media like aluminum oxide.

Another key point: bead blasting changes only the outer surface layer while preserving the part’s original dimensions and tolerances. That is why it is often preferred when surface preservation and cosmetic finish are critical.

The Physics of Bead Blasting (How It Works)

A bead blasting process can be summarized as controlled kinetic energy transfer.

Compressed air and kinetic energy transfer

Compressed air accelerates the blasting media and transfers kinetic energy to the beads. Those beads are propelled at high velocity and impact the workpiece surface. When the beads strike, their kinetic energy creates tiny indentations or dimples.

Because the media is spherical, it creates a peening effect (a hammering and dimpling action) rather than cutting into the surface. This peening effect is also associated with residual stress changes:

• Impacts deform the “skin” of the material.
• That skin elongation is restricted by continuity with the core, which results in compressive stress at the surface.
• High compressive residual stresses near the surface are balanced by lower tensile stresses distributed in the core.

Why the finish looks matte

The optical change is not magic; it is geometry. Circular micro-pits scatter light, shifting the surface appearance toward matte or silky and reducing glare. Instead of reflecting in a single direction (which creates shine and hotspots), light scatters in many directions.

A real-world caution on material behavior (titanium example)

Residual stresses are not always permanent. NASA Langley Research Center observations reported significant stress relaxation in treated Ti-6Al-4V coupons exposed at 600°F and 800°F. In other words, if a component will see elevated temperatures, it is smart to consider how stable the induced stresses will be in service.

Bead Blasting vs. More Aggressive Abrasive Blasting (Why “Gentle” Matters)

Bead blasting is consistently described as gentler than sandblasting and other abrasive blasting methods. The “gentle” label is not marketing; it comes down to media shape and how energy is applied.

Spherical beads vs. angular media

• Bead blasting: Spherical media peens the surface, causing minimal material removal and almost no dimensional change.
• More aggressive blasting (often “sandblasting” behavior): Angular media (such as silica sand or aluminum oxide) tends to cut into the surface, making it more likely to remove material.

Because bead blasting causes almost no dimensional change, it is suitable for secondary processing of precision machined parts where tolerances must be preserved. This is also why bead blasting is preferred when surface integrity is the priority but the part still needs cleaning or cosmetic improvement.

Optical components and high-integrity surfaces

In sensitive applications, including optical components, surface integrity is crucial. Bead blasting can be ideal in these scenarios because it focuses on surface preservation rather than aggressive cutting.

Uniformity and glare reduction

Bead blasting is valued for finish uniformity: it produces a consistent matte or satin look across the surface. The resulting micro-pits scatter light and reduce glare, improving visual consistency on housings, panels, and consumer-facing metal parts.

Equipment Overview (What a Bead Blasting System Includes)

A bead blasting setup is more than a “gun and air.” The system architecture affects finish consistency, operating cost, and even operator visibility.

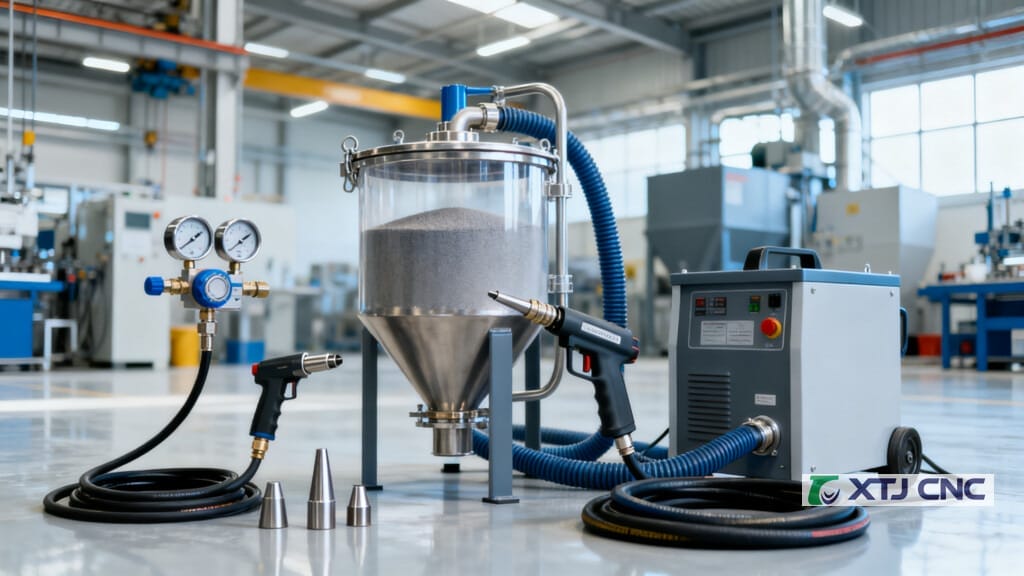

Core blast system components

A typical abrasive blast system includes:

• An abrasive container (blasting pot)
• A propelling mechanism
• A blasting nozzle

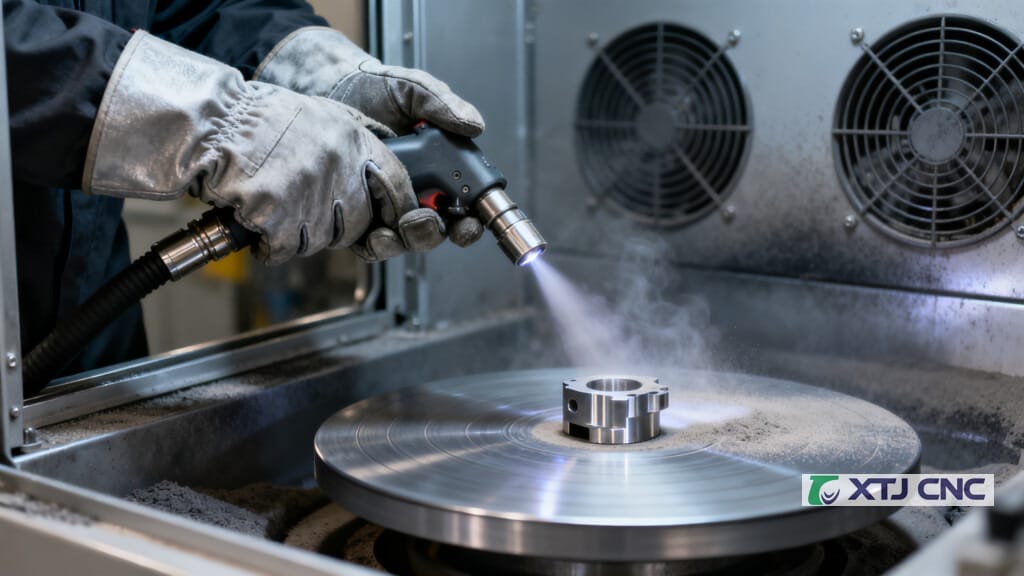

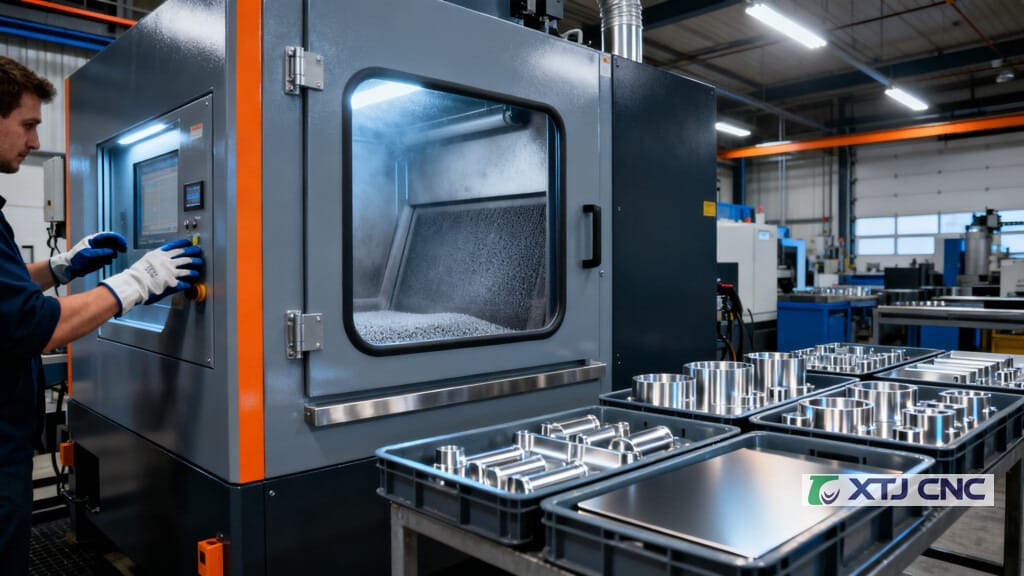

Cabinet or chamber (and why it matters)

A bead blasting cabinet or chamber is an enclosed structure designed to prevent dust escape and contain the blasting media and the workpiece. Many cabinets include practical operator features like LED lighting, observation windows, and high-intensity filtration.

Cabinet blasting is commonly used for precision and small-to-medium parts where consistent finishes are required.

Gun, nozzle, and wear considerations

The spray gun (bead blaster gun) directs and controls media flow. Depending on the system, it may allow adjustments to nozzle angle, distance, and outlet gas flow rate.

Nozzle wear is a real production variable, so wear-resistant nozzle materials matter. Tungsten carbide nozzles are often recommended for longer life. One cited durability metric is that a single spray gun can be used for approximately 10,000 spray cycles (though real life depends on media, pressure, and maintenance).

Compressed air, dust collection, and media reclaim

A complete system typically also includes:

• Compressed air system: An air compressor generates the high-pressure air flow needed to propel media at speed.
• Dust collector: Picks up and filters dust from blasted surfaces and spent media, maintaining clear visibility inside the cabinet.
• Ventilation/negative pressure: Dust collection can create negative pressure to help prevent dust from escaping.
• Media recycling/reclaim system: Separates broken beads and dust from reusable media, enabling significant savings on abrasive consumption and reducing waste. It also helps keep finishes and production rates consistent.
• Protective gloves: Commonly built for durability (for example, three-layer structures designed for high wear resistance and static isolation).

Air Supply and Filtration (Performance, Sizing, and Cleanliness)

Air quality and airflow capacity are not side issues in bead blasting; they are process fundamentals.

Compressor sizing basics

A commonly cited rule of thumb is that industrial air compressors produce about 4.5 SCFM per horsepower (HP). For blasting cabinets, compressor sizing is often referenced in the range of 3 to 15 HP per nozzle, while blast rooms can require up to 53 HP per man or nozzle.

Pressure as a process control variable

Bead blasting pressure is often set in the neighborhood of 40 to 100 psi, depending on media and the part’s material and geometry. Stable pressure is a major contributor to consistent results.

Filtration performance and visibility

Dust collection is not only about housekeeping. It is about operator visibility and finish stability:

• Dust collectors are cited as removing 99% of 1 micron (or larger) material.
• With HEPA filtration, systems can remove particles down to 1/2 micron.
• Negative pressure in the cabinet helps prevent dust escape and keeps the environment controlled.

A cleaner cabinet environment improves visibility and helps achieve consistent finishing conditions, especially for cosmetic parts.

Step-by-Step Process (From Setup to Finished Surface)

Bead blasting is easy to start but hard to standardize without a defined process. The good news is that the key controls are straightforward.

1) Select parameters and media for the target outcome

Outcomes are tailored by controlling:

• Pressure
• Nozzle distance
• Media selection

Choosing the right bead media is one of the most direct ways to achieve a targeted cleaning or finishing result.

2) Prepare and place the workpiece

The part is placed in an enclosed cabinet or chamber to contain dust and media and to create a controlled workspace.

Practical best practice from process guidance: remove oils and debris before blasting. Any residue can interfere with how beads land and can reduce uniformity.

3) Propel the media

Compressed air accelerates beads through the gun and nozzle, creating a controllable, repeatable media stream.

4) Build the texture through controlled passes

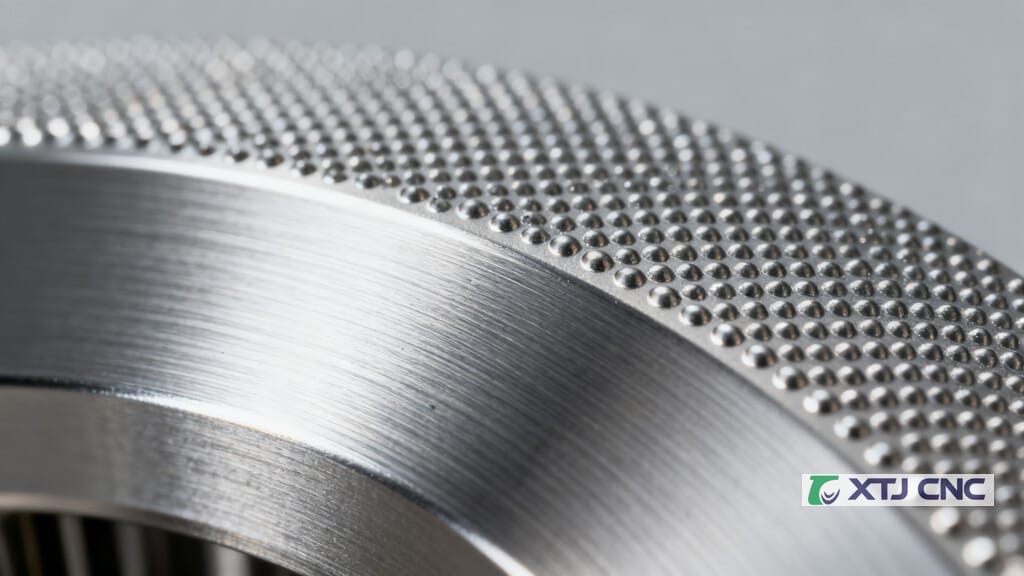

Bead impacts create dense fields of dimples and micro-pits. As the operator continues, overlapping indentations build the consistent bead blast texture.

Actionable tips for more consistent results

• Maintain consistent nozzle distance and angle throughout the part.
• Use overlapping passes to avoid “striping” or uneven sheen.
• Treat bead blasting like a finishing operation, not just cleaning; consistency is the goal.

Bead Blasting Media and Finish Guide

Two variables drive the finish you actually get: the bead’s mesh size (its diameter) and the air pressure behind it. Finer beads and lower pressure produce a smoother, lower-Ra surface; coarser beads and higher pressure remove more surface irregularity but leave a rougher texture.

Mesh size	Bead diameter (microns)	Typical Ra (microns)	Where it’s used
US 20–40 mesh	425–850	2.0–3.2	Heavy peening, aggressive cleaning
US 40–70 mesh	212–425	1.2–2.5	General industrial peening, casting cleanup
US 70–100 mesh	150–212	0.8–1.8	Standard cleaning and peening
US 100–170 mesh	90–150	0.6–1.2	Decorative stainless finishing, precision cleaning
US 170–200 mesh	75–90	0.4–0.8	Fine satin cosmetic finish, medical device cleaning
US 200–325 mesh	45–75	0.3–0.6	Ultra-fine finishing, optical surfaces

Bead blast finish by material

The same mesh size does not behave identically across materials. Aluminum, stainless steel, and titanium each call for a different starting point:

Material	Typical media	Typical pressure	Notes
Aluminum	60–170 mesh (typically 60–80 for general work, up to 170 for a finer satin)	40–60 psi	Aluminum finishes quickly at moderate pressure; going coarser or higher-pressure than needed just adds unnecessary material removal.
Stainless steel	70–150 mesh, sometimes ceramic or steel media for faster cycle times	65–90 psi	Higher hardness needs more energy to peen evenly; expect a slightly higher Ra for the same mesh than on aluminum.
Titanium	150–200 mesh (fine)	40–45 psi	Titanium work-hardens and marks easily. Fine media and reduced pressure protect the surface and avoid embedding contaminants.

For a cosmetic, decorative bead blast finish on aluminum or stainless, the 100–200 mesh range at the lower end of its pressure window is the common starting point, landing around Ra 0.4–1.2 microns. For titanium, staying fine and low-pressure protects the surface from embedded media and surface marking.

Design and Masking Guidelines for Bead-Blasted Parts

Bead blasting removes a small, uniform layer of material across every surface it touches, typically in the range of 0.005–0.025 mm. That is negligible for a cosmetic surface, but it matters on anything with a tight tolerance, a mating fit, or a functional feature.

What to mask

• Threads — use silicone plugs or caps; media in a thread root is difficult to fully clear and can affect fit.
• Bearing bores and sealing surfaces — combine a rigid cap with light adhesive tape at the edge so grit cannot migrate underneath.
• Press-fit and H7-class bores, and any feature under about ±0.02 mm — mask outright, or account for the material removal in the tolerance stack-up, or finish those features after blasting instead of before.
• Datum faces used for later fixturing or inspection.

Designing a part that blasts well

• Avoid deep, narrow pockets (deeper than about 3× their width) — the media stream can’t reach the bottom evenly, so the finish comes out inconsistent.
• Avoid sharp internal corners under about 0.5 mm radius for the same reason.
• Thin sections under roughly 1.5 mm can flex or distort under the impact stream; if a thin wall or fin is unavoidable, use lower pressure (around 30–40 psi) and a wider standoff distance, and support the section during blasting.

On the drawing, mark which surfaces are masked and call out the tolerance basis, for example: “Dimensions shown are post-bead-blast. Machine critical features to size before blasting or mask as indicated.” That one line prevents the most common rework loop on a bead-blasted part: a dimension that measured correctly before finishing and shifted out of tolerance after.

Pros and Cons (Trade-Offs to Know)

Conclusion: When Bead Blasting Is the Right Finishing Choice

Bead blasting is best understood as precision surface refinement: a controlled, spherical-media impact process that cleans and visually homogenizes parts while preserving geometry. That “gentle but effective” profile is exactly why it shows up in demanding sectors like medical, automotive, and electronics, and why it is frequently used before anodizing, painting, and electroplating.

For manufacturers and product teams, the real lever is process control. Stable air supply, proper filtration, consistent parameters, and the right cabinet setup are what turn bead blasting from an inconsistent cosmetic step into a repeatable finishing process.

If the goal is a uniform satin-matte finish without sacrificing critical dimensions, bead blasting is often the most practical, production-friendly answer.
