China Sheet Metal Cutting | CNC Laser Cutting Services
China sheet metal cutting gives engineers and procurement teams access to precision-cut metal parts. You’ll get processes made to tight tolerances, supported by full inspection, and delivered faster than most regional suppliers can manage.
At XTJ CNC, we’ve provided CNC sheet metal cutting services since 2005, serving engineers and OEM sourcing teams across the aerospace, automotive, medical, and electronics industries. Whether you need a single prototype bracket or a production batch of laser-cut enclosure panels, we cut to your drawings.
Custom Sheet Metal Parts Cut to Your Exact Drawings
We manufacture custom laser-cut sheet metal parts matched exactly to your specifications. With 120+ advanced machines and a 300-person team, we handle every step all under one roof.
What is China Sheet Metal Cutting?
China sheet metal cutting uses CNC-controlled cutting systems to profile flat metal stock into precise shapes and features according to customer drawings. Chinese fabrication shops have invested heavily in high-power fiber laser equipment. The result is that China-based cutting services now offer speed and tolerance capabilities that compete with any global option, at a significantly lower per-part cost.
For engineers sourcing custom-cut parts, the right China partner combines machine capability with a documented quality system. This is where XTJ CNC steps in. Rather than just offering raw cutting power, we pair our cutting capabilities with strict ISO 9001 process controls. We maintain full material traceability from raw stock to finished part and use CMM equipment to verify critical dimensions. This ensures your parts match your exact drawings every time.
CNC Sheet Metal Cutting Processes We Offer
We provide a full range of China CNC sheet cutting services for metal parts. We match each process to your part geometry, material, thickness, and tolerance requirements.
| Process | Thickness Range | Tolerance | Best For |
|---|---|---|---|
| Fiber Laser Cutting | 0.5 mm – 25 mm | ±0.1 mm | Steel, aluminum, stainless steel, copper, brass |
| CNC Bending (post-cut) | Up to 12 mm | ±0.5° bend angle | Enclosures, brackets, frames |
| Waterjet Cutting | Up to 50 mm+ | ±0.1 mm | Heat-sensitive or thick materials |
| Plasma Cutting | 3 mm – 50 mm | ±0.5 mm | Structural steel, non-cosmetic parts |
Our fiber laser systems cut sheet thicknesses from 0.5 mm to 25 mm with positional tolerances to ±0.1 mm as standard. For thin-to-mid sheets under 10 mm, fiber laser cutting is two to four times faster than CO₂ systems of equivalent power. We cut mild steel, stainless steel (304, 316, 316L), aluminum (5052, 6061), copper, and brass.
After cutting, CNC press brakes achieve bend angle accuracy to ±0.5°, critical for enclosures and structural brackets where mating faces must align precisely. We work with sheet thicknesses up to 12 mm, depending on the material grade and bend radius. Offline programming minimizes springback and holds consistent angles across a production batch.
Waterjet cutting uses a high-pressure water and abrasive stream to cut without heat. This makes it a strong option for heat-sensitive alloys, hardened steels, and thick plates where laser kerf and heat-affected zones are concerns. We use waterjet for parts where thermal distortion would compromise dimensional control or where material properties need to be preserved.
For structural steel parts where cosmetic edge finish is secondary to speed and economy, plasma cutting delivers fast, cost-effective profiling on thicker gauges. We use plasma for non-critical structural work and transition to fiber laser where tighter tolerances or surface quality are required.
What Materials are Available for China Custom Sheet Metal Cutting?
We cut a wide range of metals to accommodate the full spectrum of part requirements – from lightweight aerospace enclosures to heavy-gauge structural frames.
- Mild Steel (SPCC, S235, A36): Cost-effective, easily welded, and readily available. Best for structural brackets, frames, and enclosures where weight is not critical. Widely used in automotive and industrial applications.
- Stainless Steel (304, 316, 316L): Corrosion-resistant grades for medical, food-grade, and marine applications. 316L is preferred where chloride exposure is a concern.
- Aluminum (5052, 6061): Lightweight with good formability. 5052 bends well without cracking; 6061 offers higher strength for structural parts. Common in electronics housings and aerospace brackets.
- Copper and Brass: Used for electrical components, heat exchangers, and decorative parts. Fiber laser systems handle reflective materials like copper and brass more safely than CO₂ alternatives.
- Galvanized and Pre-Coated Steels: Reduces finishing steps when the coating survives the fabrication process. Suitable for consumer products and light industrial enclosures.

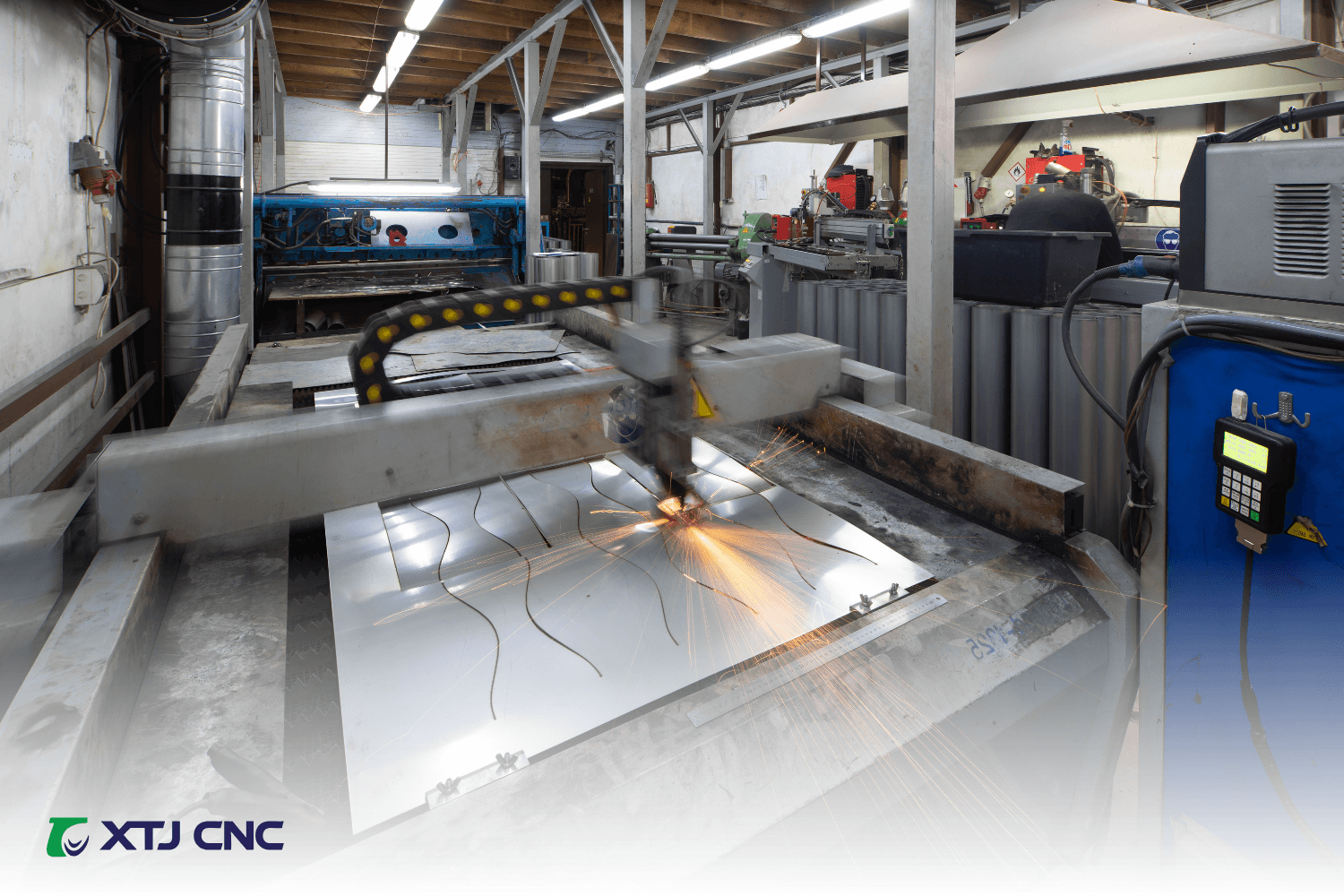

Buyers often ask whether fiber laser cutting is the right process, or whether waterjet, plasma, or CO₂ laser would serve their part better. The answer depends on material type, thickness, edge quality requirements, and downstream assembly steps.
- Fiber laser vs. CO₂ laser: Fiber lasers deliver narrower kerf widths and tighter tolerances on metals. For thin-to-mid sheets under 10 mm, fiber systems cut significantly faster at lower energy cost. CO₂ lasers remain competitive on non-metals and very thick plates, but for metal parts with tight dimensional requirements, fiber lasers are the better choice.
- Fiber laser vs. waterjet: Waterjet produces no heat-affected zone, making it useful for heat-sensitive materials. Fiber lasers are faster and more cost-effective for standard metals in normal thickness ranges.
- Fiber laser vs. plasma: Plasma works well for thick structural steel where edge finish isn’t critical. Fiber lasers produce cleaner edges and tighter tolerances on thinner gauges.
For most sheet metal cutting applications in steel, stainless steel, and aluminum under 25 mm, fiber laser cutting provides the best combination of tolerance, speed, edge quality, and cost.
Which Industries do We Serve?
At XTJ CNC, we deliver custom sheet metal cut parts for a wide range of industries. Each sector has unique tolerance, material, and documentation requirements.
Aerospace
For aerospace applications, there is no room for dimensional deviation or material uncertainty. We precision-cut flight-ready panels, internal housings, and structural brackets using aerospace-grade aluminum, titanium, and stainless steel. To meet strict compliance standards, every single aerospace shipment automatically includes comprehensive CMM inspection reports and full material certificates.
Automotive
Automotive sheet metal components need consistent quality across batches. Our cutting processes support prototype builds and low- to mid-volume production of battery enclosures, body reinforcements, and interior structural parts. Our ISO 9001 certified quality management system and IATF 16949 compliance for automotive work underpin every order we ship.
Medical and Healthcare
Equipment in the medical and healthcare field requires strict dimensional control and perfectly burr-free edges to ensure safe operation and handling. We manufacture intricate instrument frames and specialized device enclosures that hold to exacting medical-grade tolerances. By aligning our quality control processes with ISO 13485 requirements, we guarantee complete material traceability.
Electronics and Consumer Products
Electronics enclosures, chassis, and mounting hardware require dimensional accuracy and cosmetically acceptable surface finishes. We fabricate these parts from lightweight aluminum grades like 5052 and 6061, with in-house anodizing and powder coating to lock in your cosmetic spec. Three-to-five-day lead times let your R&D team validate fit and finish before committing to expensive production tooling.
Partnering with us for your sheet metal cutting needs delivers advantages across your production schedule, budget, and quality output.
- Faster time to market: Three-to-five-day prototype lead times and streamlined DFM reviews compress your development cycle so you can iterate quickly and hit your launch dates.
- Lower per-part cost: China-based cutting gives you access to advanced fiber laser systems at a fraction of the cost of equivalent Western suppliers. This is all without compromising on tolerance or finish quality.
- Reduced rework risk: Our DFM review catches design issues before cutting starts, reducing rework risks and costs.
- Scalable volume: Start with a single prototype at no minimum order quantity and scale into production batches without switching suppliers or renegotiating terms.
- Full traceability: Every order ships with CMM inspection reports and material certificates. You have documented proof that your parts meet specifications – important for audits and regulated industries.
How do We Ensure Quality in Our China Sheet Metal Cutting Services?
Every part we produce passes through a documented inspection process. We use CMM equipment to verify critical dimensions against your drawing tolerances, and we maintain full material traceability from raw stock to finished part.
- ISO 9001 Certified Manufacturing: Our entire operation is governed by a rigorous quality management system. This certification ensures that our process controls, supplier qualification protocols, and corrective actions meet internationally recognized standards.
- Precision Tolerances: Our fiber laser systems reliably achieve positional tolerances down to ±0.1 mm, which our inspection team verifies on all qualifying features. If your design demands even tighter dimensions, we can seamlessly route those specific features through our in-house secondary CNC machining operations.
- Automotive-Grade Compliance: For our clients in the automotive sector, we offer fully compliant manufacturing processes. This includes providing detailed First Article Inspection reports and highly specific Geometric Dimensioning and Tolerancing (GD&T) annotated CMM outputs to validate your parts.
- Material certificates: Mill test certificates, RoHS compliance documents, and material data sheets are available for medical and regulated industry orders.

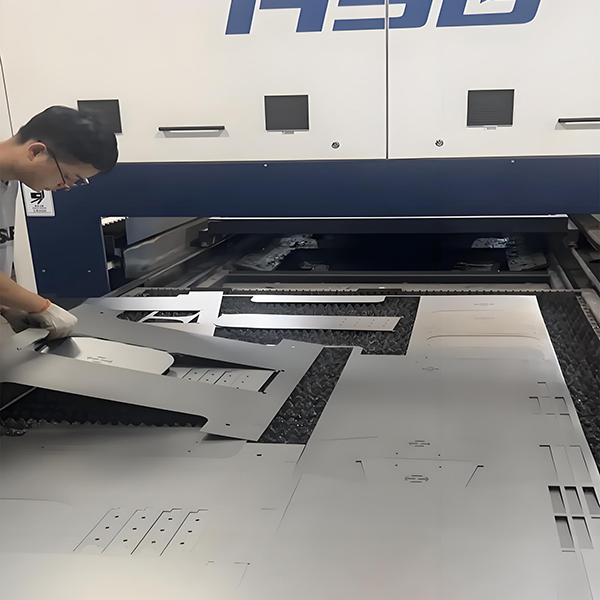

Why Choose XTJ CNC for Your Sheet Metal Cutting Needs?
XTJ CNC has structured its operations to remove friction from your supply chain, giving you speed, accountability, and seamless scalability.
- No MOQ: We don’t impose minimum order quantities, meaning you can order a single prototype just as easily as a full production batch. When it’s time to ramp up your volume, we scale with you under the same contract and terms. This saves you the headache of vetting a new production supplier.
- End-to-End Service: We handle the entire fabrication lifecycle within our 12,000 m² facility. From the initial DFM review through the actual cutting, bending, welding, finishing processes, and final CMM inspection, everything is managed internally. This guarantees you have one dedicated point of contact and a single quality system taking full accountability for your parts.
- Global Shipping: We routinely ship custom sheet metal cut parts to facilities worldwide. Our shipping processes are backed by two decades of logistics experience serving demanding international OEM clients, ensuring your parts arrive securely and on schedule.
Whether you are validating a single prototype or executing a massive production run, our team is fully equipped to support your project from that first DFM review all the way to final delivery. Learn more about our full sheet metal fabrication services or our CNC machining capabilities.
